AC-DC Power Supplies
QM
550W - 2000W Modular power supplyThe high efficiency modular QM range is available in system fan and low noise fan versions. The 5 models (QM4, QM5, QM5H, QM7 and QM8) within the range cover the range from 550W-1200W low line and 650W-2000W high line. Combining 1 MOPP (1.5kVac) input to ground, 2 MOPP (4kVac) input to output and 1 MOPP (1.5kVac) output to ground isolation, the entire QM range is certified for both medical equipment (making it suitable for BF (body floating) type) and industrial. High efficiency levels of up to 91% are combined with a wide selection of modules to perfectly match your requirement
Features
- Full medical isolation (MoPP)
- Low speed, low audible noise fan
- Up to 18 outputs
- Industry Leading
- 7 Year Warranty
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| QM5 (up to 12 outputs) |
700W
(Low line) 800W (High line) |
2.8V - 105.6V / 110A | Enclosed |  |
Enquire |
|
|
| QM5H (up to 12 outputs) |
700W
(Low line) 1.2kW (High line) |
2.8V - 105.6V / 110A | Enclosed | |
Enquire |
|
|
| QM4 (up to 10 outputs) |
550W
(Low line) 650W (High line) |
2.8V - 105.6V / 110A | Enclosed | |
Enquire |
|
|

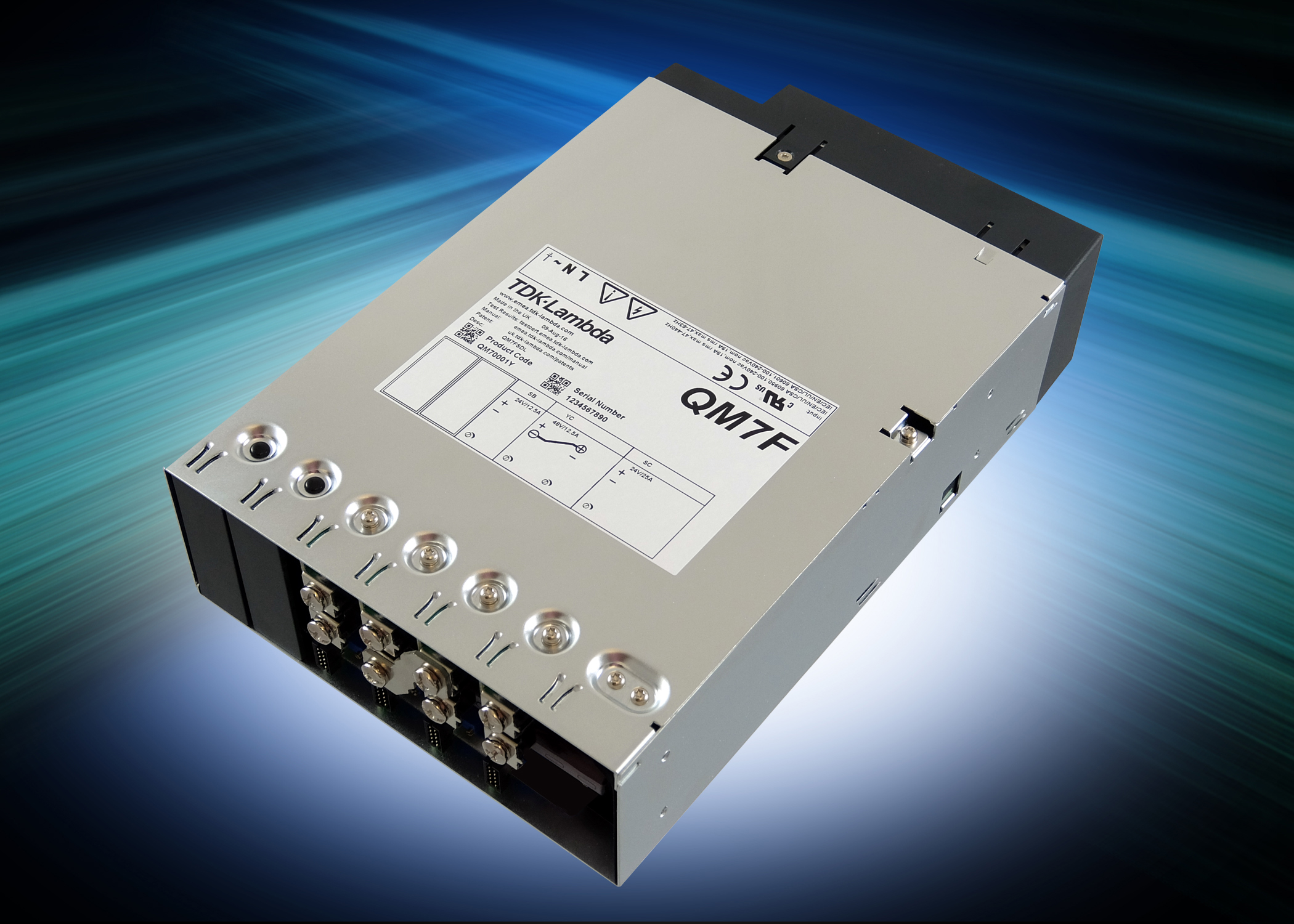

| QM7 (up to 16 outputs) |
1.2kW
(Low line) 1.5kW (High line) |
2.8V - 105.6V / 110A | Enclosed | |
Enquire |
|
|
| QM8 (up to 18 outputs) |
1.2kW
(Low line) 1.5kW (High line) |
2.8V - 105.6V / 110A | Enclosed | |
Enquire |
|
|
| QM8B (up to 18 outputs) |
1.2kW
(Low line) 2kW (High line) |
2.8V - 105.6V / 110A | Enclosed | |
Enquire |
|
| Part number | |
|---|---|
| QM5 (up to 12 outputs) | |
| Power |
700W
(Low line) 800W (High line) |
| Output info | 2.8V - 105.6V / 110A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| QM5H (up to 12 outputs) | |
| Power |
700W
(Low line) 1.2kW (High line) |
| Output info | 2.8V - 105.6V / 110A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| QM4 (up to 10 outputs) | |
| Power |
550W
(Low line) 650W (High line) |
| Output info | 2.8V - 105.6V / 110A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| QM7 (up to 16 outputs) | |
| Power |
1.2kW
(Low line) 1.5kW (High line) |
| Output info | 2.8V - 105.6V / 110A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| QM8 (up to 18 outputs) | |
| Power |
1.2kW
(Low line) 1.5kW (High line) |
| Output info | 2.8V - 105.6V / 110A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| QM8B (up to 18 outputs) | |
| Power |
1.2kW
(Low line) 2kW (High line) |
| Output info | 2.8V - 105.6V / 110A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
Key :
Current product
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
