DC-DC Converters
iBH

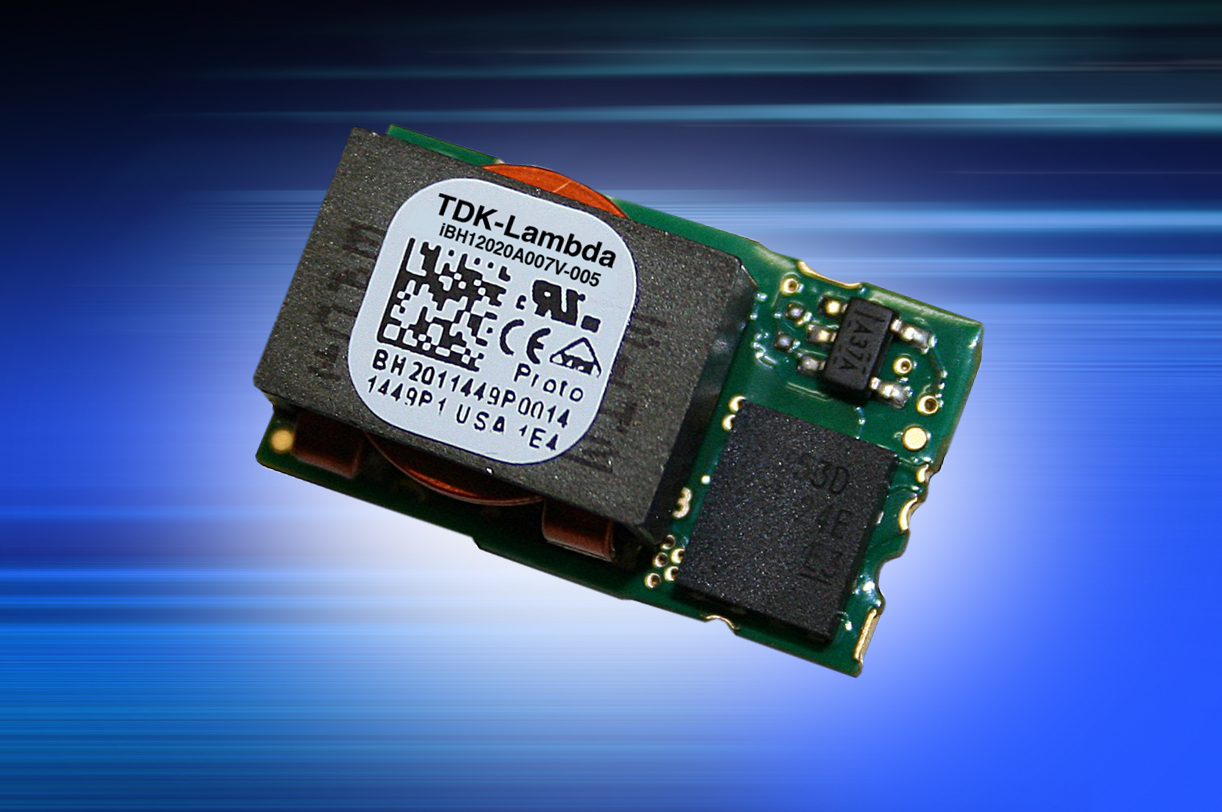

20A Non-isolated SMT Point of LoadThe iBH series is one of TDK-Lambda's third generation DOSA-2+ compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 20.3 x 11.4mm, the product will deliver 20A (67% more than the iBF models) from either a 5V or 12V nominal input with efficiency levels of up to 96%.
Features
- DOSA Compatible Footprint
- Constant Switching Frequency
- No External Loop Tuning Components Needed
- Excellent Transient Response
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| iBH12020A007V-007-R | 80W |
4V / 20A |
Open Frame DOSA smt |  |
Enquire |
|
| Part number | |
|---|---|
| iBH12020A007V-007-R | |
| Power | 80W |
| Output info |
4V / 20A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
Key :
Current product
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
Quick Product Finder
Try our Quick Product Finder
Choose your power supply type to begin:iBH videos
Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.
iBH Technical Downloads
Datasheets
Manuals
Images & 3D Drawings
Other resources
Not currently availableiBH In the TDK-Lambda Newsroom
Point of Load DC-DC converter delivers 20A from 5V and 12V bus voltages
Read the article
