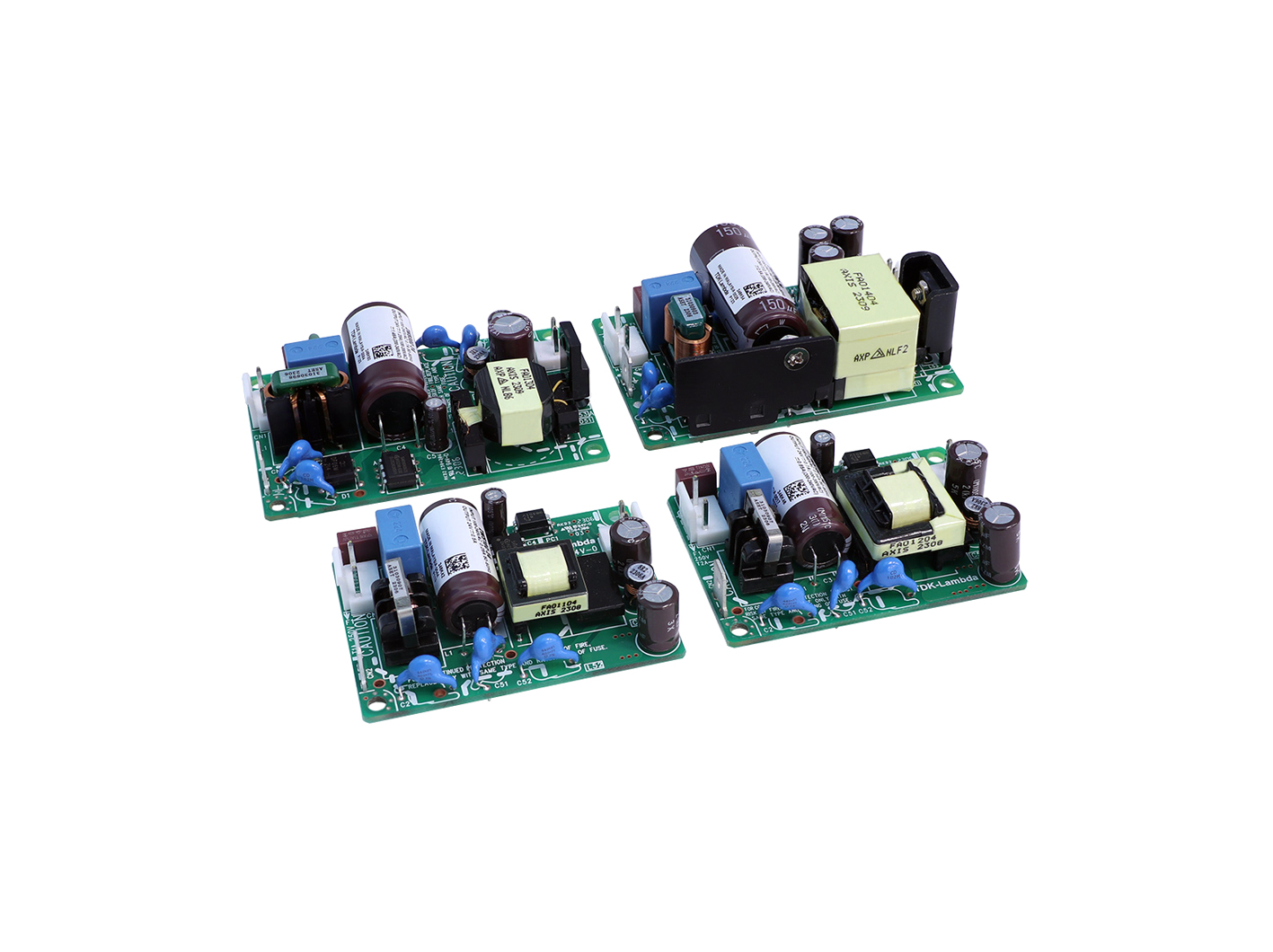

The ZWS-C industrial grade power supplies are used in a wide range of applications where equipment down-time cannot be tolerated during years of operation. Globally, process control, machinery, semiconductor fabrication and test and measurement equipment manufacturers depend upon the ZWS series to provide a reliable source of power. Conservatively rated electrolytic capacitor temperatures offer an improved field life of up to 15 years. Available in four power levels, 10W, 15W, 30W and 50W, the series provides a choice of 5V, 12V, 15V, 24V and 48V (50W only) outputs. These compact products meet class B conducted and radiated EMI in either a Class I or Class II (double insulated) construction, without the need for external filtering. In addition to a double sided board coating option, L bracket and cover configurations are available, or terminal pins for printed circuit board mounting.
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
---|---|---|---|---|---|---|---|
ZWS10C-5 | 10W |
5V / 2A |
Open Frame pcb | Enquire | |||
ZWS15C-5 | 15W |
5V / 3A |
Open Frame pcb | Enquire | |||
ZWS30C-5 | 20W |
5V / 4A |
Open Frame pcb | Enquire | |||
ZWS50C-5 | 30W |
5V / 6A |
Open Frame pcb | Enquire | |||
ZWS10C-12 | 10.8W |
12V / 0.9A |
Open Frame pcb | Enquire | |||
ZWS15C-12 | 15.6W |
12V / 1.3A |
Open Frame pcb | Enquire | |||
ZWS30C-12 | 30W |
12V / 2.5A |
Open Frame pcb | Enquire | |||
ZWS50C-12 | 51.6W |
12V / 4.3A |
Open Frame pcb | Enquire | |||
ZWS10C-15 | 10.5W |
15V / 0.7A |
Open Frame pcb | Enquire | |||
ZWS15C-15 | 15W |
15V / 1A |
Open Frame pcb | Enquire | |||
ZWS30C-15 | 30W |
15V / 2A |
Open Frame pcb | Enquire | |||
ZWS50C-15 | 52.5W |
15V / 3.5A |
Open Frame pcb | Enquire | |||
ZWS10C-24 | 12W |
24V / 0.5A |
Open Frame pcb | Enquire | |||
ZWS15C-24 | 16.8W |
24V / 0.7A |
Open Frame pcb | Enquire | |||
ZWS30C-24 | 30W |
24V / 1.25A |
Open Frame pcb | Enquire | |||
ZWS50C-24 | 50.4W |
24V / 2.1A |
Open Frame pcb | Enquire | |||
ZWS50C-48 | 52.8W |
48V / 1.1A |
Open Frame pcb | Enquire |
Part number | |
---|---|
ZWS10C-5 | |
Power | 10W |
Output info |
5V / 2A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS15C-5 | |
Power | 15W |
Output info |
5V / 3A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS30C-5 | |
Power | 20W |
Output info |
5V / 4A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS50C-5 | |
Power | 30W |
Output info |
5V / 6A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS10C-12 | |
Power | 10.8W |
Output info |
12V / 0.9A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS15C-12 | |
Power | 15.6W |
Output info |
12V / 1.3A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS30C-12 | |
Power | 30W |
Output info |
12V / 2.5A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS50C-12 | |
Power | 51.6W |
Output info |
12V / 4.3A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS10C-15 | |
Power | 10.5W |
Output info |
15V / 0.7A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS15C-15 | |
Power | 15W |
Output info |
15V / 1A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS30C-15 | |
Power | 30W |
Output info |
15V / 2A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS50C-15 | |
Power | 52.5W |
Output info |
15V / 3.5A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS10C-24 | |
Power | 12W |
Output info |
24V / 0.5A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS15C-24 | |
Power | 16.8W |
Output info |
24V / 0.7A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS30C-24 | |
Power | 30W |
Output info |
24V / 1.25A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS50C-24 | |
Power | 50.4W |
Output info |
24V / 2.1A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample | |
ZWS50C-48 | |
Power | 52.8W |
Output info |
48V / 1.1A |
Construction | Open Frame pcb |
Status | |
Stock Level | Enquire |
View PDF datasheet | |
Request quote / sample |
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.
Class I & II industrial 10 to 50W power supplies feature low output noise, long field life and Class B EMI
