AC-DC Power Supplies
MTW

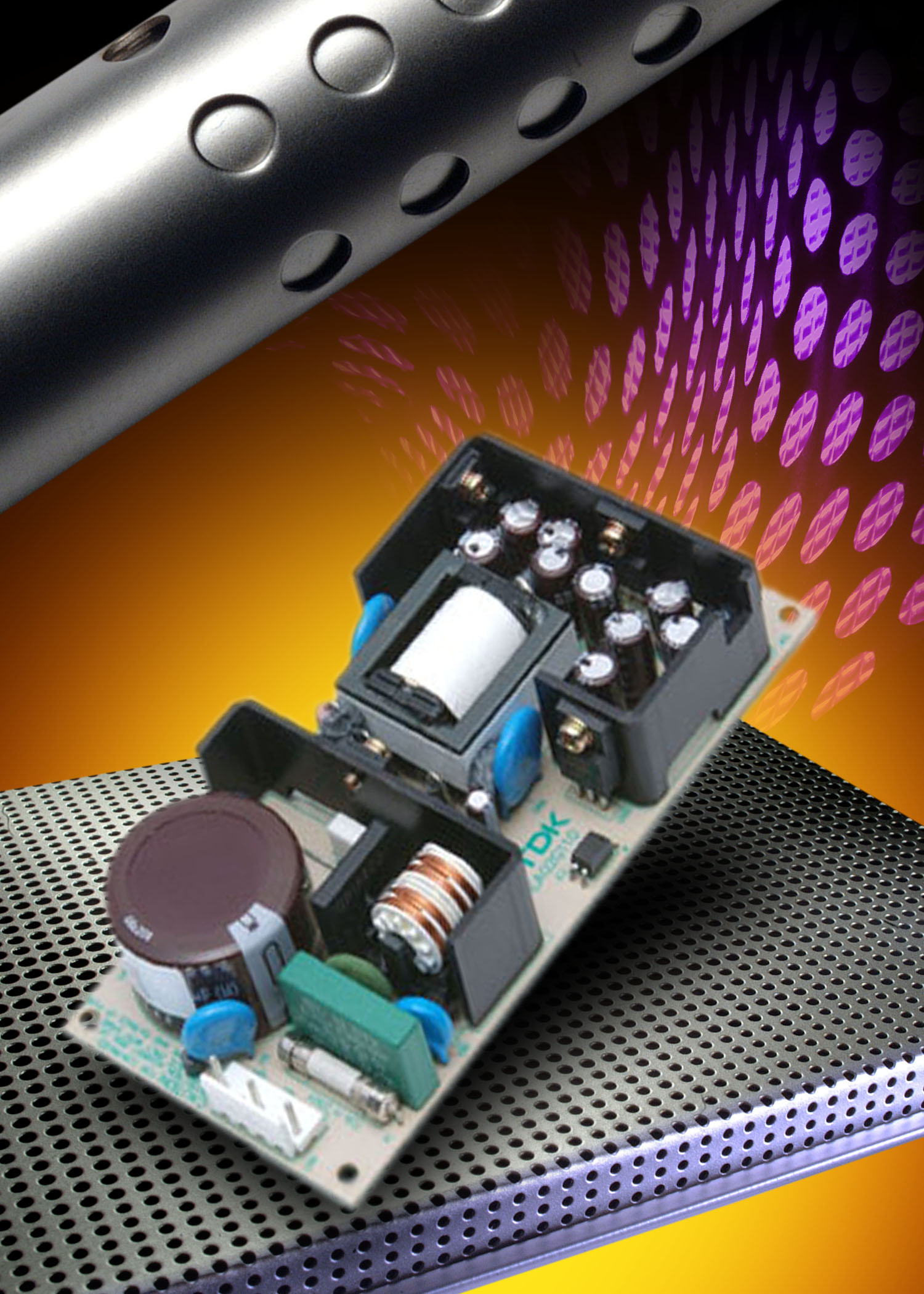

15W - 60W Low Profile Triple Output Power SuppliesWith a two converter topology, the MTW 15, 30 and 60W triple output power supplies do not have the minimum loading requirement found on many low power multiple output products. The main output is also isolated from the other two outputs, allowing series operation for higher voltages. Measuring just 26mm high, these slim-line products are suitable for low profile applications where height is restricted.
Features
- Compact, Slim, Lightweight
- Low Cost Design
- Meets UL, C-UL, TUV approvals
- Conforms to FCC-B, VCCI-B, EN55011-B, EN55022-B
- 3 Year Warranty
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| MTW15-51515 | 15W |
5V / 2A 15V / 0.3A -15V / 0.2A |
Open Frame pcb |  |
Enquire |
|
|
| MTW30-51515 | 30W |
5V / 3A 15V / 0.8A -15V / 0.3A |
Open Frame pcb | |
Enquire |
|
|
| MTW60-51515 | 60W |
5V / 5A 15V / 2A -15V / 0.5A |
Open Frame pcb | |
Enquire |
|
|
| MTW15-51212 | 15W |
5V / 2A 12V / 0.3A -12V / 0.2A |
Open Frame pcb | |
Enquire |
|
|
| MTW30-51212 | 30W |
5V / 3A 12V / 1.2A -12V / 0.3A |
Open Frame pcb | |
Enquire |
|
|
| MTW60-51212 | 60W |
5V / 5A 12V / 2.5A -12V / 0.5A |
Open Frame pcb | |
Enquire |
|
|
| MTW15-51212 | 15W |
5V / 2A 12V / 0.3A -12V / 0.2A |
Open Frame pcb | |
Enquire |
|
|
| MTW30-51212 | 30W |
5V / 3A 12V / 1.2A -12V / 0.3A |
Open Frame pcb | |
Enquire |
|
|
| MTW60-51212 | 60W |
5V / 5A 12V / 2.5A -12V / 0.5A |
Open Frame pcb | |
Enquire |
|
|
| MTW15-51515 | 15W |
5V / 2A 15V / 0.3A -15V / 0.2A |
Open Frame pcb | |
Enquire |
|
|
| MTW30-51515 | 30W |
5V / 3A 15V / 0.8A -15V / 0.3A |
Open Frame pcb | |
Enquire |
|
|
| MTW60-51515 | 60W |
5V / 5A 15V / 2A -15V / 0.5A |
Open Frame pcb | |
Enquire |
|
| Part number | |
|---|---|
| MTW15-51515 | |
| Power | 15W |
| Output info |
5V / 2A 15V / 0.3A -15V / 0.2A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW30-51515 | |
| Power | 30W |
| Output info |
5V / 3A 15V / 0.8A -15V / 0.3A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW60-51515 | |
| Power | 60W |
| Output info |
5V / 5A 15V / 2A -15V / 0.5A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW15-51212 | |
| Power | 15W |
| Output info |
5V / 2A 12V / 0.3A -12V / 0.2A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW30-51212 | |
| Power | 30W |
| Output info |
5V / 3A 12V / 1.2A -12V / 0.3A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW60-51212 | |
| Power | 60W |
| Output info |
5V / 5A 12V / 2.5A -12V / 0.5A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW15-51212 | |
| Power | 15W |
| Output info |
5V / 2A 12V / 0.3A -12V / 0.2A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW30-51212 | |
| Power | 30W |
| Output info |
5V / 3A 12V / 1.2A -12V / 0.3A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW60-51212 | |
| Power | 60W |
| Output info |
5V / 5A 12V / 2.5A -12V / 0.5A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW15-51515 | |
| Power | 15W |
| Output info |
5V / 2A 15V / 0.3A -15V / 0.2A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW30-51515 | |
| Power | 30W |
| Output info |
5V / 3A 15V / 0.8A -15V / 0.3A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| MTW60-51515 | |
| Power | 60W |
| Output info |
5V / 5A 15V / 2A -15V / 0.5A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
