ZWX

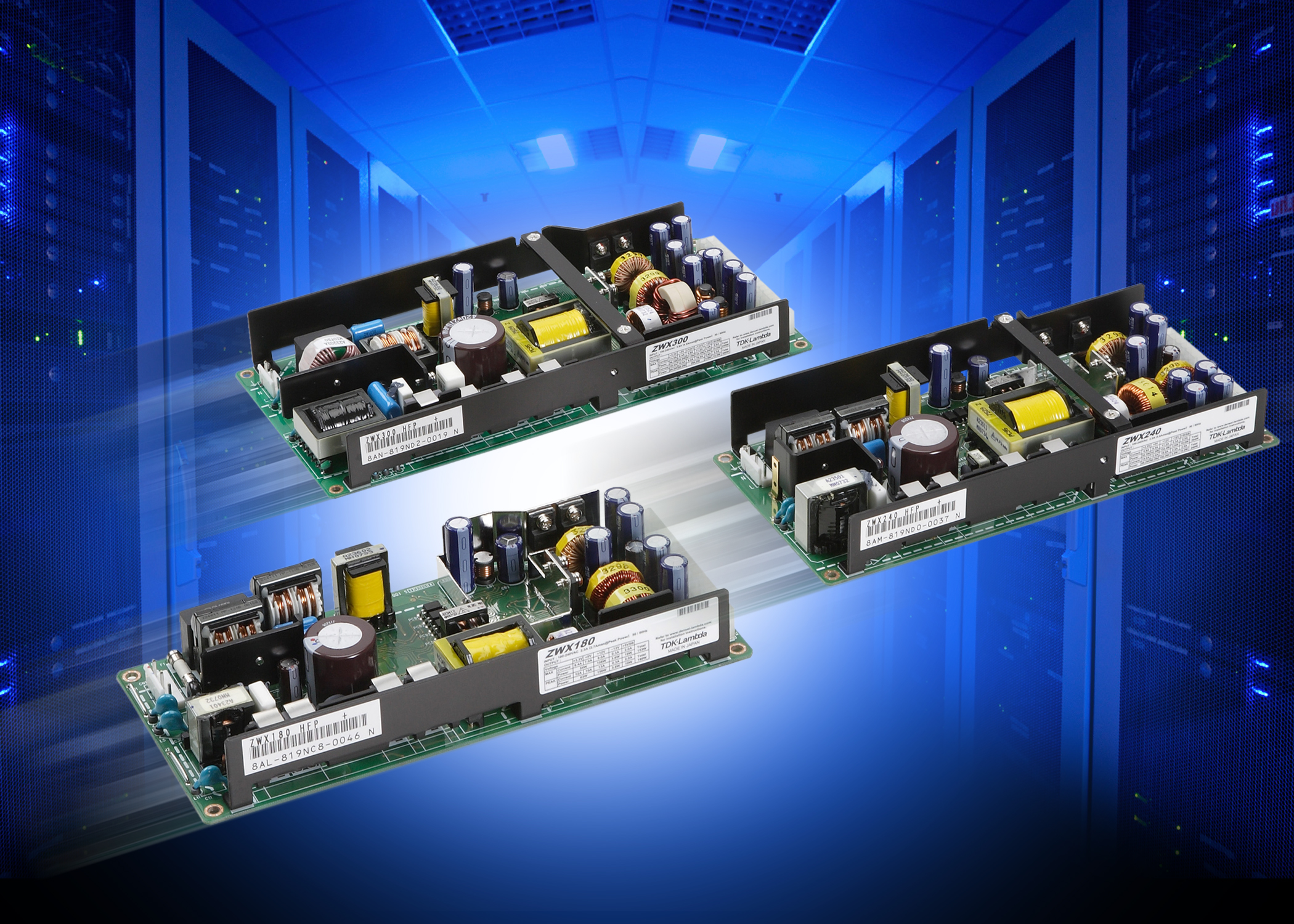

180W - 300W Industrial ATX Power Supplies

Targeting the industrial ATX computer market, the ZWX series will operate without any forced air cooling, enabling the product to be used in applications where the use of fans cannot be tolerated. The remote on/off and DC good signals comply with the SFX12V standards. Three power levels are available - 180W, 240W and 300W.

Features

90 - 150W Convection Cooled Ratings
1U High
AFX SFX 12V Compatible
Power Factor Corrected
Peak Power Ratings
No Minimum Loading Required

Downloads

Datasheets & Manuals

Images & 3D Drawings

Product Image

Useful links

Other resources

JWS, JWS-P, ZWX, PAH, PAQ end of life notice

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number	Power	Output info	Construction	Stock Level	Request quote / sample
ZWX180	180W	3.3V / 6A 5V / 5A 12V / 6A -12V / 0.2A 5V / 1.4A	Open Frame pcb	n/a	ZWX180
ZWX240	240W	3.3V / 7A 5V / 6A 12V / 8A -12V / 0.2A 5V / 1.4A	Open Frame pcb	n/a	ZWX240
ZWX300	300W	3.3V / 10A 5V / 6A 12V / 4A -12V / 0.2A 5V / 5A	Open Frame pcb	n/a	ZWX300
ZWX180	180W	3.3V / 6A 5V / 5A 12V / 6A -12V / 0.2A 5V / 1.4A	Open Frame pcb	n/a	ZWX180
ZWX240	240W	3.3V / 7A 5V / 6A 12V / 8A -12V / 0.2A 5V / 1.4A	Open Frame pcb	n/a	ZWX240
ZWX300	300W	3.3V / 10A 5V / 6A 12V / 4A -12V / 0.2A 5V / 5A	Open Frame pcb	n/a	ZWX300
ZWX180	180W	3.3V / 6A 5V / 5A 12V / 6A -12V / 0.2A 5V / 1.4A	Open Frame pcb	n/a	ZWX180
ZWX240	240W	3.3V / 7A 5V / 6A 12V / 8A -12V / 0.2A 5V / 1.4A	Open Frame pcb	n/a	ZWX240
ZWX300	300W	3.3V / 10A 5V / 6A 12V / 4A -12V / 0.2A 5V / 5A	Open Frame pcb	n/a	ZWX300
