DC-DC Converters

PH-A

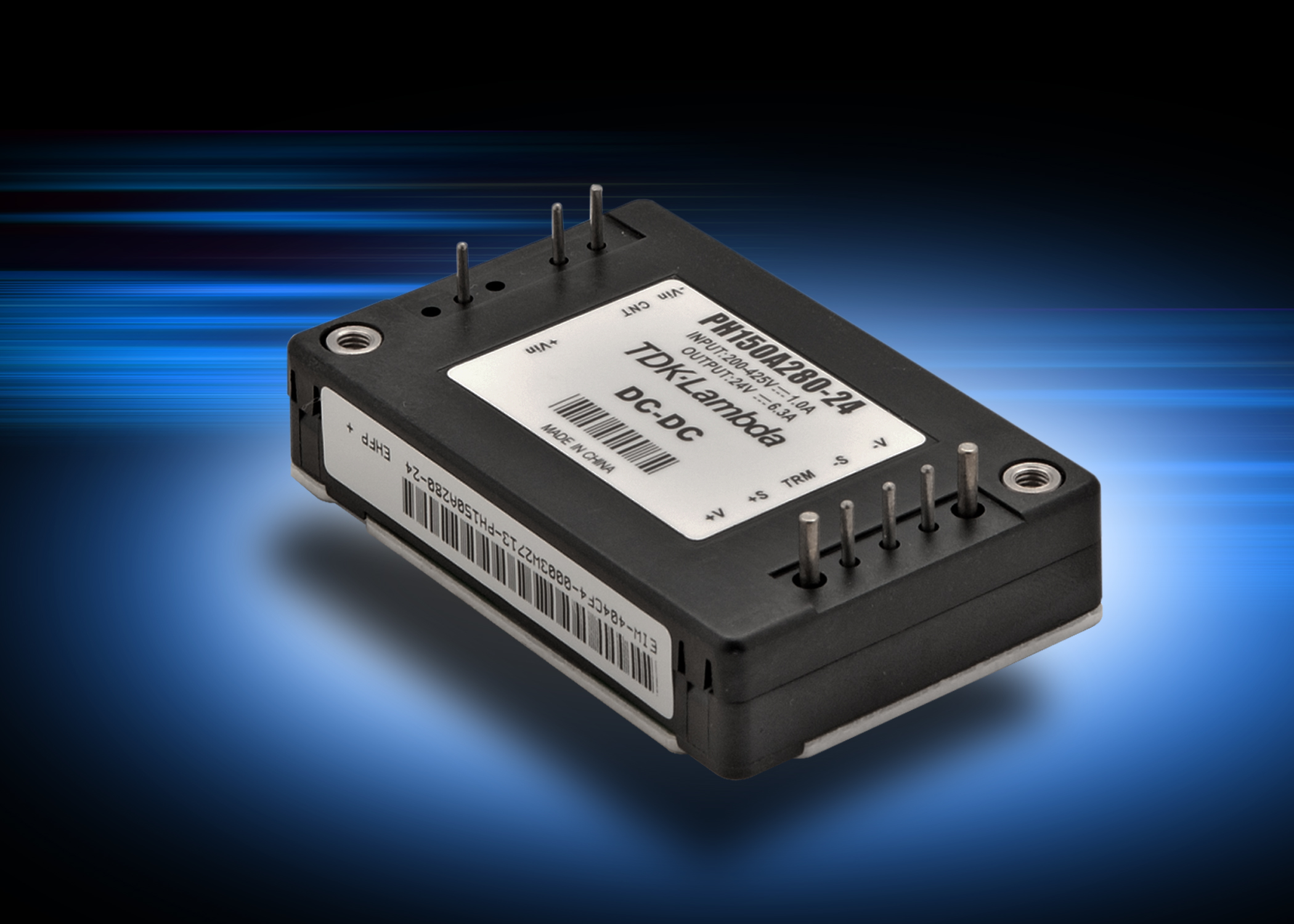

50W-600W High Density Power Modules

The second generation PH-A power modules feature higher efficiencies and smaller sizes than the previous PH series. These conduction cooled units accept a wide 200V to 425Vdc input, making them suitable for the emerging 380Vdc power architecture, which is used in datacentres, power generation and telecommunications facilities, where the use of higher voltage helps to reduce losses.

Features

High Power Density
Up to 425 Vdc Input
Fixed Operating Frequency
High Efficiency

Downloads

Datasheets & Manuals

Images & 3D Drawings

Useful links

Specification, Drawings, Technical Files

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number	Power	Output info	Construction	Stock Level	Request quote / sample
PH75A280-3.3	49.5W	3.3V / 15A	Quarter Brick	Enquire	PH75A280-3.3
PH100A280-3.3	66W	3.3V / 20A	Quarter Brick	Enquire	PH100A280-3.3
PH50A280-5	50W	5V / 10A	Quarter Brick	Enquire	PH50A280-5
PH75A280-5	75W	5V / 15A	Quarter Brick	Enquire	PH75A280-5
PH100A280-5	100W	5V / 20A	Quarter Brick	Enquire	PH100A280-5
PH300A280-5	300W	5V / 60A	Quarter Brick	Enquire	PH300A280-5
PH50A280-12	50.4W	12V / 4.2A	Quarter Brick	Enquire	PH50A280-12
PH75A280-12	75.6W	12V / 6.3A	Quarter Brick	Enquire	PH75A280-12
PH100A280-12	100.8W	12V / 8.4A	Quarter Brick	Enquire	PH100A280-12
PH300A280-12	300W	12V / 25A	Half Brick	Check stock	PH300A280-12
PH1200A280-12	1.2kW	12V / 100A	Full Brick	Enquire	PH1200A280-12
PH75A280-15	75W	15V / 5A	Quarter Brick	Enquire	PH75A280-15
PH150A280-15	150W	15V / 10A	Quarter Brick	Enquire	PH150A280-15
PH50A280-24	50.4W	24V / 2.1A	Quarter Brick	Enquire	PH50A280-24
PH75A280-24	76.8W	24V / 3.2A	Quarter Brick	Enquire	PH75A280-24
PH100A280-24	100.8W	24V / 4.2A	Quarter Brick	Enquire	PH100A280-24
PH150A280-24	151.2W	24V / 6.3A	Quarter Brick	Check stock	PH150A280-24
PH300A280-24	300W	24V / 12.5A	Half Brick	Check stock	PH300A280-24
PH600A280-24	600W	24V / 25A	Half Brick	Check stock	PH600A280-24
PH1200A280-24	1.2kW	24V / 50A	Full Brick	Enquire	PH1200A280-24
PH75A280-28	75.6W	28V / 2.7A	Quarter Brick	Enquire	PH75A280-28
PH150A280-28	151.2W	28V / 5.4A	Quarter Brick	Enquire	PH150A280-28
PH300A280-28	302.4W	28V / 10.8A	Half Brick	Enquire	PH300A280-28
PH1200A280-28	1.2kW	28V / 42.9A	Full Brick	Enquire	PH1200A280-28
PH1200A280-36	1.2kW	36V / 33.4A	Full Brick	Enquire	PH1200A280-36
PH50A280-48	52.8W	48V / 1.1A	Quarter Brick	Enquire	PH50A280-48
PH75A280-48	76.8W	48V / 1.6A	Quarter Brick	Enquire	PH75A280-48
PH100A280-48	100.8W	48V / 2.1A	Quarter Brick	Enquire	PH100A280-48
PH150A280-12	150W	48V / 2.1A	Quarter Brick	Check stock	PH150A280-12
PH150A280-48	153.6W	48V / 3.2A	Quarter Brick	Enquire	PH150A280-48
PH300A280-48	302.4W	48V / 6.3A	Half Brick	Enquire	PH300A280-48
PH1200A280-48	1.2kW	48V / 25A	Full Brick	Enquire	PH1200A280-48
