Programmable Power Supplies

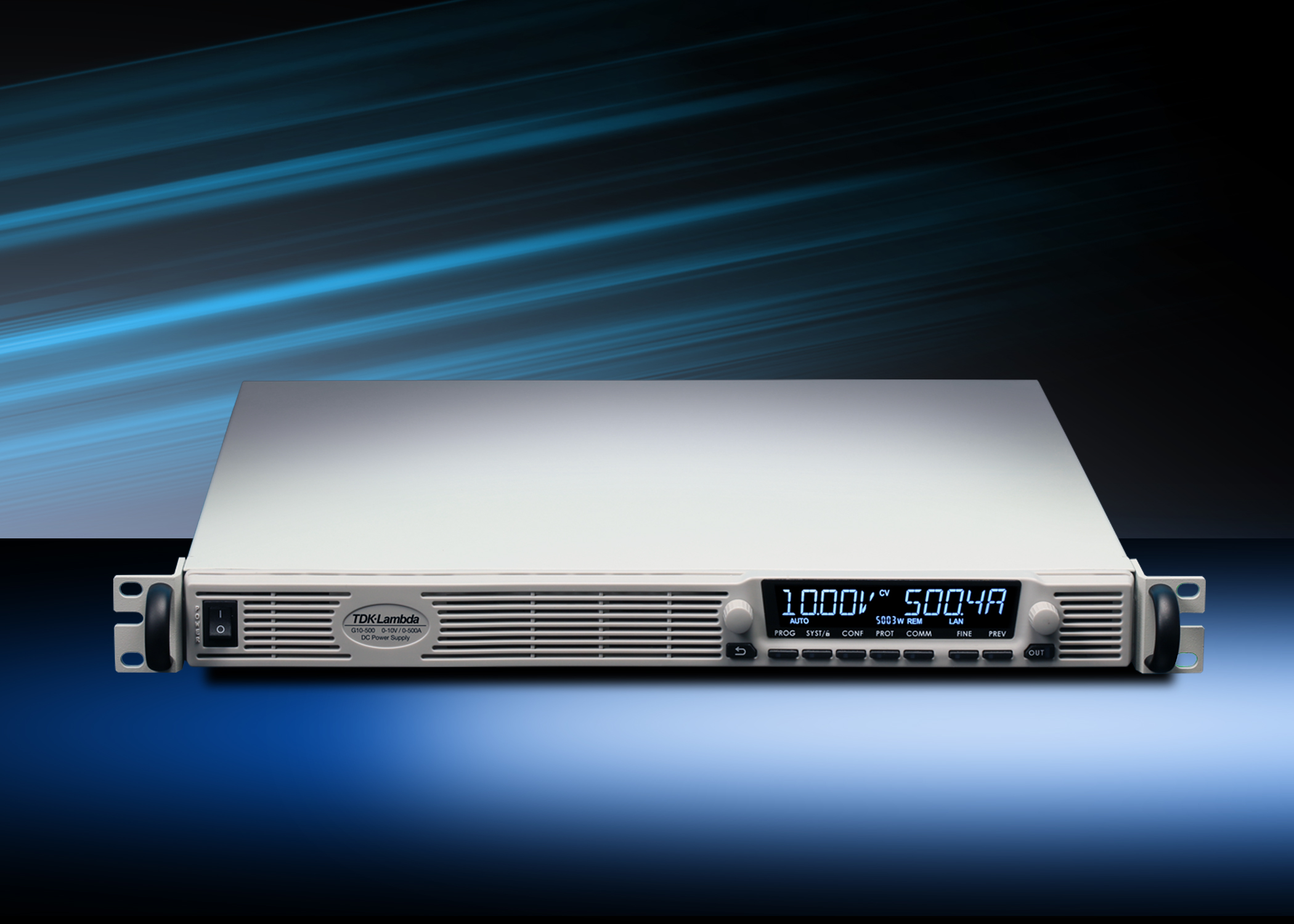

GENESYS+™
1kW, 1.7kW, 2.7kW, 3.4kW, 5kW and 7.5kW in 1UThe new, five year warranty, GENESYS+™ 1U programmable power supply series is available in 1kW, 1.7kW, 2.7kW, 3.4kW, 5kW and 7.5kW 19” rack models and can deliver power ratings up to 7520W, with the highest power density and lightest weight (< 5kg for the 1.7kW, <7.5kg for the 5kW, < 8.5kg for the 7.5kW) available in a 1U rack size.
The latest 5kW and 7.5kW models offer output voltages up to 1500V and the maximum output current for the product family is 500A with constant voltage, constant current and constant power operation. Control of voltage and current slew rate, arbitrary waveform generation and storage, internal resistance simulation and display brightness control are all standard features.
Multiple remote programming methods are available including LAN (LXI 1.5), USB, RS-232/RS-485 and isolated analogue interfaces (0-5V/0-10V) built in as standard .
Interface options include EtherCAT, Modbus-TCP, IEEE (488.2) and isolated analogue current loop (4-20mA).
A unique, easy auto configuring master / slave paralleling system enables scalable power systems up to 90kW to be configured.
Special options for extra fast programming response, aimed at automotive test applications, and integral power sink are available on selected models.
1kW and 1.7kW models accept single phase input 85-265Vac.
2.7kW and 3.4kW models can be specified with single phase 170-265Vac input or three-phase 170-265Vac, 342-460Vac or 342-528Vac input.
5kW models can be ordered to accept three-phase 170-265Vac, 342-460Vac or 342-528Vac input.
7.5kW and 5kW 1kV 1.5kV models can be ordered to accept three-phase 170-265Vac or 342-528Vac input.
Features
- Highest Power Density Available - 5kW in 1U
- Arbitrary Waveform Generation and Storage
- Programmable Slew Rate Control
- Constant Voltage, Constant Current and Constant Power Limit Operation
- Internal Resistance Programming
- Built-In LAN, USB, RS-232/RS-485 and Isolated Analogue Interfaces
- Optional EtherCAT, Modbus-TCP and IEEE488 Interfaces
- Blank Front Panel Option
- Scalable Power Systems up to 30kW
- 5 Year Warranty
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| G10-100 | 1kW |
10V / 100A |
1U Rack |  |
Enquire |
|
|
| G10-170 | 1.7kW |
10V / 170A |
1U Rack | |
Enquire |
|
|
| G10-265 | 2.65kW |
10V / 265A |
1U Rack | |
Enquire |
|
|
| G10-340 | 3.4kW |
10V / 340A |
1U Rack | |
Enquire |
|
|
| G10-500 | 5kW |
10V / 500A |
1U Rack | |
Enquire |
|
|
| G20-50 | 1kW |
20V / 50A |
1U Rack | |
Enquire |
|
|
| G20-85 | 1.7kW |
20V / 85A |
1U Rack | |
Enquire |
|
|
| G20-85-F | 1.7kW |
20V / 85A |
1U Rack | |
Enquire |
|
|
| G20-85-PSINK | 1.7W |
20V / 85A |
1U Rack | |
Enquire |
|
|
| G20-135 | 2.7kW |
20V / 135A |
1U Rack | |
Enquire |
|
|
| G20-170 | 3.4kW |
20V / 170A |
1U Rack | |
Enquire |
|
|
| G20-170-F | 3.4kW |
20V / 170A |
1U Rack | |
Enquire |
|
|
| G20-170-PSINK | 3.4W |
20V / 170A |
1U Rack | |
Enquire |
|
|
| G20-250 | 5kW |
20V / 250A |
1U Rack | |
Enquire |
|
|
| G20-250-F | 5kW |
20V / 250A |
1U Rack | |
Enquire |
|
|
| G20-375 | 7.5kW |
20V / 375A |
1U Rack | |
Enquire |
|
|
| G30-34 | 1.02kW |
30V / 34A |
1U Rack | |
Enquire |
|
|
| G30-56 | 1.68kW |
30V / 56A |
1U Rack | |
Enquire |
|
|
| G30-56-F | 1.68kW |
30V / 56A |
1U Rack | |
Enquire |
|
|
| G30-56-PSINK | 1.7W |
30V / 56A |
1U Rack | |
Enquire |
|
|
| G30-90 | 2.7kW |
30V / 90A |
1U Rack | |
Enquire |
|
|
| G30-112 | 3.36kW |
30V / 112A |
1U Rack | |
Enquire |
|
|
| G30-112-F | 3.36kW |
30V / 112A |
1U Rack | |
Enquire |
|
|
| G30-112-PSINK | 3.4W |
30V / 112A |
1U Rack | |
Enquire |
|
|
| G30-170 | 5.1kW |
30V / 170A |
1U Rack | |
Enquire |
|
|
| G30-170-F | 5.1kW |
30V / 170A |
1U Rack | |
Enquire |
|
|
| G30-250 | 7.5kW |
30V / 250A |
1U Rack | |
Enquire |
|
|
| G40-25 | 1kW |
40V / 25A |
1U Rack | |
Enquire |
|
|
| G40-42 | 1.68kW |
40V / 42A |
1U Rack | |
Enquire |
|
|
| G40-42-F | 1.68kW |
40V / 42A |
1U Rack | |
Enquire |
|
|
| G40-42-PSINK | 1.7W |
40V / 42A |
1U Rack | |
Enquire |
|
|
| G40-68 | 2.72kW |
40V / 68A |
1U Rack | |
Enquire |
|
|
| G40-85 | 3.4kW |
40V / 85A |
1U Rack | |
Enquire |
|
|
| G40-85-F | 3.4kW |
40V / 85A |
1U Rack | |
Enquire |
|
|
| G40-85-PSINK | 3.4W |
40V / 85A |
1U Rack | |
Enquire |
|
|
| G40-125 | 5kW |
40V / 125A |
1U Rack | |
Enquire |
|
|
| G40-125-F | 5kW |
40V / 125A |
1U Rack | |
Enquire |
|
|
| G40-188 | 7.52kW |
40V / 188A |
1U Rack | |
Enquire |
|
|
| G50-100 | 5kW |
50V / 100A |
1U Rack | |
Enquire |
|
|
| G60-17 | 1.02kW |
60V / 17A |
1U Rack | |
Enquire |
|
|
| G60-28 | 1.68kW |
60V / 28A |
1U Rack | |
Enquire |
|
|
| G60-28-PSINK | 1.7W |
60V / 28A |
1U Rack | |
Enquire |
|
|
| G60-45 | 2.7kW |
60V / 45A |
1U Rack | |
Enquire |
|
|
| G60-56 | 3.36kW |
60V / 56A |
1U Rack | |
Enquire |
|
|
| G60-56-PSINK | 3.4W |
60V / 56A |
1U Rack | |
Enquire |
|
|
| G60-85 | 5.1kW |
60V / 85A |
1U Rack | |
Enquire |
|
|
| G60-125 | 7.5kW |
60V / 125A |
1U Rack | |
Enquire |
|
|
| G80-12.5 | 1kW |
80V / 12.5A |
1U Rack | |
Enquire |
|
|
| G80-21 | 1.68kW |
80V / 21A |
1U Rack | |
Enquire |
|
|
| G80-34 | 2.72kW |
80V / 34A |
1U Rack | |
Enquire |
|
|
| G80-42 | 3.36kW |
80V / 42A |
1U Rack | |
Enquire |
|
|
| G80-65 | 5.2kW |
80V / 65A |
1U Rack | |
Enquire |
|
|
| G80-94 | 7.52kW |
80V / 94A |
1U Rack | |
Enquire |
|
|
| G100-10 | 1kW |
100V / 10A |
1U Rack | |
Enquire |
|
|
| G100-17 | 1.7kW |
100V / 17A |
1U Rack | |
Enquire |
|
|
| G100-17-PSINK | 1.7W |
100V / 17A |
1U Rack | |
Enquire |
|
|
| G100-27 | 2.7kW |
100V / 27A |
1U Rack | |
Enquire |
|
|
| G100-34 | 3.4kW |
100V / 34A |
1U Rack | |
Enquire |
|
|
| G100-34-PSINK | 3.4W |
100V / 34A |
1U Rack | |
Enquire |
|
|
| G100-50 | 5kW |
100V / 50A |
1U Rack | |
Enquire |
|
|
| G100-75 | 7.5kW |
100V / 75A |
1U Rack | |
Enquire |
|
|
| G150-7 | 1.05kW |
150V / 7A |
1U Rack | |
Enquire |
|
|
| G150-11.2 | 1.68kW |
150V / 11.2A |
1U Rack | |
Enquire |
|
|
| G150-18 | 2.7kW |
150V / 18A |
1U Rack | |
Enquire |
|
|
| G150-22.5 | 3.375kW |
150V / 22.5A |
1U Rack | |
Enquire |
|
|
| G150-34 | 5.1kW |
150V / 34A |
1U Rack | |
Enquire |
|
|
| G150-50 | 7.5kW |
150V / 50A |
1U Rack | |
Enquire |
|
|
| G200-25 | 5kW |
200V / 25A |
1U Rack | |
Enquire |
|
|
| G200-37.5 | 7.5kW |
200V / 37.5A |
1U Rack | |
Enquire |
|
|
| G300-3.5 | 1.05kW |
300V / 3.5A |
1U Rack | |
Enquire |
|
|
| G300-5.6 | 1.68kW |
300V / 5.6A |
1U Rack | |
Enquire |
|
|
| G300-9 | 2.7kW |
300V / 9A |
1U Rack | |
Enquire |
|
|
| G300-11.5 | 3.45kW |
300V / 11.5A |
1U Rack | |
Enquire |
|
|
| G300-17 | 5.1kW |
300V / 17A |
1U Rack | |
Enquire |
|
|
| G300-25 | 7.5kW |
300V / 25A |
1U Rack | |
Enquire |
|
|
| G400-13 | 5.2kW |
400V / 13A |
1U Rack | |
Enquire |
|
|
| G500-10 | 5kW |
500V / 10A |
1U Rack | |
Enquire |
|
|
| G600-1.7 | 1.02kW |
600V / 1.7A |
1U Rack | |
Enquire |
|
|
| G600-2.8 | 1.68kW |
600V / 2.8A |
1U Rack | |
Enquire |
|
|
| G600-4.5 | 2.7kW |
600V / 4.5A |
1U Rack | |
Enquire |
|
|
| G600-5.6 | 3.36kW |
600V / 5.6A |
1U Rack | |
Enquire |
|
|
| G600-8.5 | 5.1kW |
600V / 8.5A |
1U Rack | |
Enquire |
|
|
| G600-12.5 | 7.5kW |
600V / 12.5A |
1U Rack | |
Enquire |
|
|
| G1000-.5 | 5kW |
1000V / 5A |
1U Rack | |
Enquire |
|
|
| G1000-7.5 | 7.5kW |
1000V / 7.5A |
1U Rack | |
Enquire |
|
|
| G1500-3.4 | 5.1kW |
1500V / 3.4A |
1U Rack | |
Enquire |
|
|
| G1500-5 | 7.5kW |
1500V / 5A |
1U Rack | |
Enquire |
|
| Part number | |
|---|---|
| G10-100 | |
| Power | 1kW |
| Output info |
10V / 100A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G10-170 | |
| Power | 1.7kW |
| Output info |
10V / 170A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G10-265 | |
| Power | 2.65kW |
| Output info |
10V / 265A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G10-340 | |
| Power | 3.4kW |
| Output info |
10V / 340A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G10-500 | |
| Power | 5kW |
| Output info |
10V / 500A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-50 | |
| Power | 1kW |
| Output info |
20V / 50A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-85 | |
| Power | 1.7kW |
| Output info |
20V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-85-F | |
| Power | 1.7kW |
| Output info |
20V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-85-PSINK | |
| Power | 1.7W |
| Output info |
20V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-135 | |
| Power | 2.7kW |
| Output info |
20V / 135A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-170 | |
| Power | 3.4kW |
| Output info |
20V / 170A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-170-F | |
| Power | 3.4kW |
| Output info |
20V / 170A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-170-PSINK | |
| Power | 3.4W |
| Output info |
20V / 170A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-250 | |
| Power | 5kW |
| Output info |
20V / 250A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-250-F | |
| Power | 5kW |
| Output info |
20V / 250A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G20-375 | |
| Power | 7.5kW |
| Output info |
20V / 375A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-34 | |
| Power | 1.02kW |
| Output info |
30V / 34A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-56 | |
| Power | 1.68kW |
| Output info |
30V / 56A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-56-F | |
| Power | 1.68kW |
| Output info |
30V / 56A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-56-PSINK | |
| Power | 1.7W |
| Output info |
30V / 56A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-90 | |
| Power | 2.7kW |
| Output info |
30V / 90A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-112 | |
| Power | 3.36kW |
| Output info |
30V / 112A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-112-F | |
| Power | 3.36kW |
| Output info |
30V / 112A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-112-PSINK | |
| Power | 3.4W |
| Output info |
30V / 112A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-170 | |
| Power | 5.1kW |
| Output info |
30V / 170A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-170-F | |
| Power | 5.1kW |
| Output info |
30V / 170A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G30-250 | |
| Power | 7.5kW |
| Output info |
30V / 250A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-25 | |
| Power | 1kW |
| Output info |
40V / 25A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-42 | |
| Power | 1.68kW |
| Output info |
40V / 42A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-42-F | |
| Power | 1.68kW |
| Output info |
40V / 42A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-42-PSINK | |
| Power | 1.7W |
| Output info |
40V / 42A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-68 | |
| Power | 2.72kW |
| Output info |
40V / 68A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-85 | |
| Power | 3.4kW |
| Output info |
40V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-85-F | |
| Power | 3.4kW |
| Output info |
40V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-85-PSINK | |
| Power | 3.4W |
| Output info |
40V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-125 | |
| Power | 5kW |
| Output info |
40V / 125A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-125-F | |
| Power | 5kW |
| Output info |
40V / 125A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G40-188 | |
| Power | 7.52kW |
| Output info |
40V / 188A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G50-100 | |
| Power | 5kW |
| Output info |
50V / 100A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-17 | |
| Power | 1.02kW |
| Output info |
60V / 17A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-28 | |
| Power | 1.68kW |
| Output info |
60V / 28A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-28-PSINK | |
| Power | 1.7W |
| Output info |
60V / 28A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-45 | |
| Power | 2.7kW |
| Output info |
60V / 45A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-56 | |
| Power | 3.36kW |
| Output info |
60V / 56A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-56-PSINK | |
| Power | 3.4W |
| Output info |
60V / 56A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-85 | |
| Power | 5.1kW |
| Output info |
60V / 85A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G60-125 | |
| Power | 7.5kW |
| Output info |
60V / 125A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G80-12.5 | |
| Power | 1kW |
| Output info |
80V / 12.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G80-21 | |
| Power | 1.68kW |
| Output info |
80V / 21A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G80-34 | |
| Power | 2.72kW |
| Output info |
80V / 34A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G80-42 | |
| Power | 3.36kW |
| Output info |
80V / 42A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G80-65 | |
| Power | 5.2kW |
| Output info |
80V / 65A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G80-94 | |
| Power | 7.52kW |
| Output info |
80V / 94A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-10 | |
| Power | 1kW |
| Output info |
100V / 10A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-17 | |
| Power | 1.7kW |
| Output info |
100V / 17A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-17-PSINK | |
| Power | 1.7W |
| Output info |
100V / 17A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-27 | |
| Power | 2.7kW |
| Output info |
100V / 27A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-34 | |
| Power | 3.4kW |
| Output info |
100V / 34A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-34-PSINK | |
| Power | 3.4W |
| Output info |
100V / 34A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-50 | |
| Power | 5kW |
| Output info |
100V / 50A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G100-75 | |
| Power | 7.5kW |
| Output info |
100V / 75A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G150-7 | |
| Power | 1.05kW |
| Output info |
150V / 7A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G150-11.2 | |
| Power | 1.68kW |
| Output info |
150V / 11.2A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G150-18 | |
| Power | 2.7kW |
| Output info |
150V / 18A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G150-22.5 | |
| Power | 3.375kW |
| Output info |
150V / 22.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G150-34 | |
| Power | 5.1kW |
| Output info |
150V / 34A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G150-50 | |
| Power | 7.5kW |
| Output info |
150V / 50A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G200-25 | |
| Power | 5kW |
| Output info |
200V / 25A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G200-37.5 | |
| Power | 7.5kW |
| Output info |
200V / 37.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G300-3.5 | |
| Power | 1.05kW |
| Output info |
300V / 3.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G300-5.6 | |
| Power | 1.68kW |
| Output info |
300V / 5.6A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G300-9 | |
| Power | 2.7kW |
| Output info |
300V / 9A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G300-11.5 | |
| Power | 3.45kW |
| Output info |
300V / 11.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G300-17 | |
| Power | 5.1kW |
| Output info |
300V / 17A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G300-25 | |
| Power | 7.5kW |
| Output info |
300V / 25A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G400-13 | |
| Power | 5.2kW |
| Output info |
400V / 13A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G500-10 | |
| Power | 5kW |
| Output info |
500V / 10A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G600-1.7 | |
| Power | 1.02kW |
| Output info |
600V / 1.7A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G600-2.8 | |
| Power | 1.68kW |
| Output info |
600V / 2.8A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G600-4.5 | |
| Power | 2.7kW |
| Output info |
600V / 4.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G600-5.6 | |
| Power | 3.36kW |
| Output info |
600V / 5.6A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G600-8.5 | |
| Power | 5.1kW |
| Output info |
600V / 8.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G600-12.5 | |
| Power | 7.5kW |
| Output info |
600V / 12.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G1000-.5 | |
| Power | 5kW |
| Output info |
1000V / 5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G1000-7.5 | |
| Power | 7.5kW |
| Output info |
1000V / 7.5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G1500-3.4 | |
| Power | 5.1kW |
| Output info |
1500V / 3.4A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| G1500-5 | |
| Power | 7.5kW |
| Output info |
1500V / 5A |
| Construction | 1U Rack |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
Key :
Current product
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
Quick Product Finder
Try our Quick product finder
Choose your power supply type to begin:GENESYS+™ videos
Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.
GENESYS+™ Technical Downloads
Manuals
Images & 3D Drawings
Other resources
Not currently availableGENESYS+™ In the TDK-Lambda Newsroom
1U high programmable DC power supply series includes 5kW 1000V and 1500V models for test and development of electric vehicles with batteries greater than 600V
Read the article
High power density 7.5kW 1U programmable DC power supply series extended with six new output configurations
Read the article
New 1U high 7,500W programmable power supply series offers models from 0-20V 375A to 0-1,500V 5A
Read the article
Automotive test simulation benefits from programmable power supplies with very fast output dynamics
Read the article
50V, 400V and 500V output programmable power supplies address EV and hydrogen production applications
Read the article
1kW programmable DC power supplies available in 1U high full or half rack sizes
Read the article
Programmable power supply series granted patent for scalable parallel connection
Read the article
200Vdc 5kW, 10kW and 15kW models augment programmable DC power supply series
Read the article
EtherCAT interface option added to programmable DC power supply series
Read the article
ModBUS-TCP interface option added to programmable DC power supply series
Read the article
1U GENESYS+™ programmable DC power supply series extended with 2.7kW and 3.4kW models
Read the article
1U programmable DC power supply series extended with 1,700W rated models
Read the article
5kW 1U programmable DC power supply series extended with five new output configurations
Read the article
New generation 1U programmable DC power supply series delivers 5kW output
Read the article
A word about our software...
In order to download our software you may need to accept the terms and conditions outlined in our End User License Agreement.
Read the EULA
Software
- Virtual Control Panel installation & applications guide
Download PDF - Web Software Download Table
Download PDF - Virtual Control Panel
Accept EULA to download
