AC-DC Power Supplies
CUS30M & CUS60M

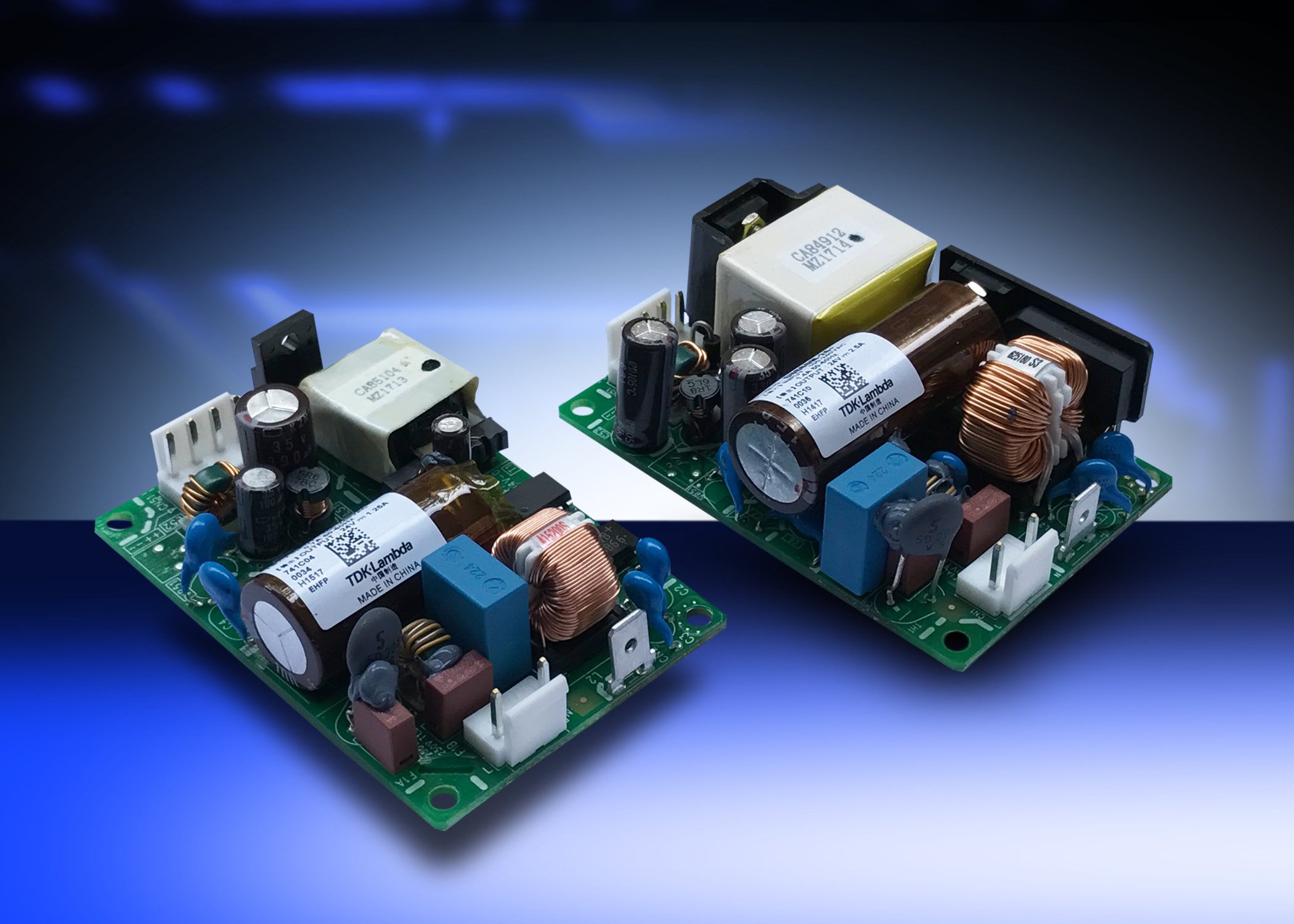

Single Output 30 - 60W Medical & ITE Power SuppliesCUS30M and CUS60M are single output 2” x 3” footprint AC/DC power supplies with outputs ranging from 5V to 48V and have IEC60601-1 3rd edition medical approval as well as IEC60950-1 and are compliant with EN60601-1-2:2015 Edition 4 immunity requirements. Rated at 30W and 60W, these compact products meet class B conducted and radiated EMI in either a Class I or Class II (double insulated) construction, without the need for external filtering. This flexibility allows the CUS30/60M to be used in a wide range of applications, including home healthcare, medical, dental, test and measurement, broadcast and industrial equipment.
Features
- High Efficiency, up to 90%
- Compact 2” x 3” Footprint
- Convection Cooled
- Suitable for Class I and II Installations
- Medical Approval with 2 x MoPP Isolation
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| CUS60M-5 | 30W |
5V / 6A |
Open Frame |  |
Check stock |
|
|
| CUS30M-12 | 30W |
12V / 2.5A |
Open Frame | |
Check stock |
|
|
| CUS60M-12 | 60W |
12V / 5A |
Open Frame | |
Enquire |
|
|
| CUS30M-15 | 30W |
15V / 2A |
Open Frame | |
Enquire |
|
|
| CUS60M-15 | 60W |
15V / 4A |
Open Frame | |
Enquire |
|
|
| CUS30M-18 | 30.6W |
18V / 1.7A |
Open Frame | |
Check stock |
|
|
| CUS60M-18 | 60.3W |
18V / 3.35A |
Open Frame | |
Enquire |
|
|
| CUS30M-24 | 30W |
24V / 1.25A |
Open Frame | |
Check stock |
|
|
| CUS60M-24 | 60W |
24V / 2.5A |
Open Frame | |
Check stock |
|
|
| CUS30M-36 | 30.24W |
36V / 0.84A |
Open Frame | |
Enquire |
|
|
| CUS30M-48 | 30.24W |
48V / 0.63A |
Open Frame | |
Check stock |
|
|
| CUS60M-48 | 60W |
48V / 1.25A |
Open Frame | |
Enquire |
|
| Part number | |
|---|---|
| CUS60M-5 | |
| Power | 30W |
| Output info |
5V / 6A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS30M-12 | |
| Power | 30W |
| Output info |
12V / 2.5A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS60M-12 | |
| Power | 60W |
| Output info |
12V / 5A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS30M-15 | |
| Power | 30W |
| Output info |
15V / 2A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS60M-15 | |
| Power | 60W |
| Output info |
15V / 4A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS30M-18 | |
| Power | 30.6W |
| Output info |
18V / 1.7A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS60M-18 | |
| Power | 60.3W |
| Output info |
18V / 3.35A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS30M-24 | |
| Power | 30W |
| Output info |
24V / 1.25A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS60M-24 | |
| Power | 60W |
| Output info |
24V / 2.5A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS30M-36 | |
| Power | 30.24W |
| Output info |
36V / 0.84A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS30M-48 | |
| Power | 30.24W |
| Output info |
48V / 0.63A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CUS60M-48 | |
| Power | 60W |
| Output info |
48V / 1.25A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
