DC-DC Converters

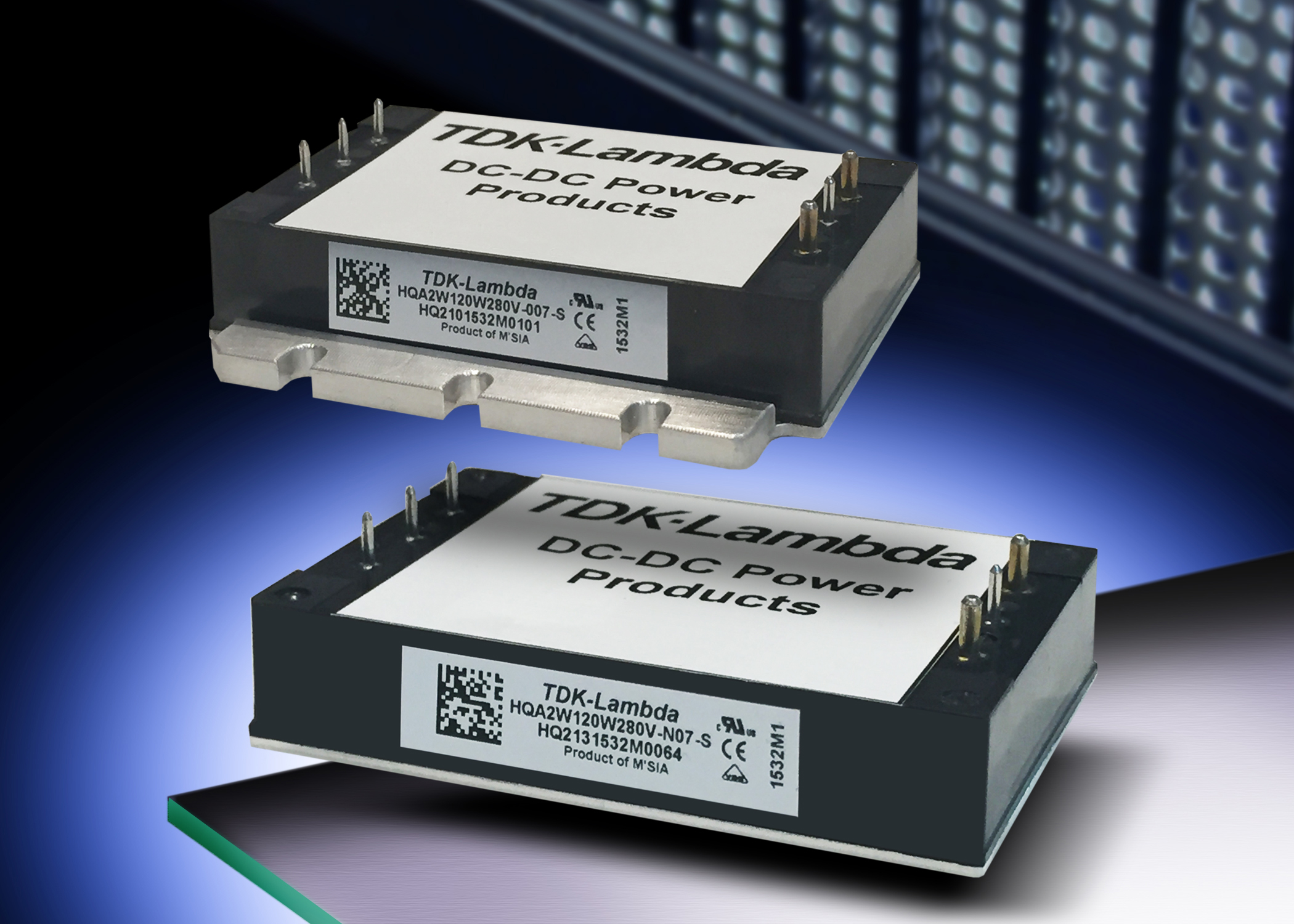

HQA

85W - 120W Harsh Environment Quarter Brick Converters

The HQA series of encapsulated DC-DC converters are packaged in a ruggedised quarter brick form factor and can deliver 85W and 120W output power. The HQA series operate over a 9V to 40V or 18V to 40V input range (50V for 1 second). These converters, with efficiencies as high as 92%, are suitable for use in COTS, communications and industrial equipment.

Features

Standard Quarter Brick Footprint
9-40, 18-40VDC Inputs
Up to 92% Efficiency
Up to 115°C Baseplate Temperatures
Rugged Package with Encapsulation
No Optocouplers Used
Enhanced Screening Option

Downloads

Datasheets & Manuals

Images & 3D Drawings

Useful links

Specification, Drawings, Technical Files

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number	Power	Output info	Construction	Stock Level	Request quote / sample
HQA2W085W050V	85W	5V / 17A	Enclosed pcb mount	Enquire	HQA2W085W050V
HQA2W120W050V	120W	5V / 24A	Enclosed pcb mount	Enquire	HQA2W120W050V
HQA2W085W120V	85W	12V / 7.1A	Enclosed pcb mount	Enquire	HQA2W085W120V
HQA2W120W120V	120W	12V / 10A	Enclosed pcb mount	Enquire	HQA2W120W120V
HQA2W085W150V	85W	15V / 5.7A	Enclosed pcb mount	Enquire	HQA2W085W150V
HQA2W120W150V	120W	15V / 8A	Enclosed pcb mount	Enquire	HQA2W120W150V
HQA2W085W240V	85W	24V / 3.5A	Enclosed pcb mount	Enquire	HQA2W085W240V
HQA2W120W240V	120W	24V / 5A	Enclosed pcb mount	Enquire	HQA2W120W240V
HQA2W085W280V	85W	28V / 3A	Enclosed pcb mount	Enquire	HQA2W085W280V
HQA2W120W280V	120W	28V / 4.2A	Enclosed pcb mount	Enquire	HQA2W120W280V
HQA24120W480V	120W	48V / 2.5A	Enclosed pcb mount	Enquire	HQA24120W480V

Part number
HQA2W085W050V
Power	85W
Output info	5V / 17A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W085W050V
HQA2W120W050V
Power	120W
Output info	5V / 24A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W120W050V
HQA2W085W120V
Power	85W
Output info	12V / 7.1A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W085W120V
HQA2W120W120V
Power	120W
Output info	12V / 10A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W120W120V
HQA2W085W150V
Power	85W
Output info	15V / 5.7A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W085W150V
HQA2W120W150V
Power	120W
Output info	15V / 8A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W120W150V
HQA2W085W240V
Power	85W
Output info	24V / 3.5A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W085W240V
HQA2W120W240V
Power	120W
Output info	24V / 5A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W120W240V
HQA2W085W280V
Power	85W
Output info	28V / 3A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W085W280V
HQA2W120W280V
Power	120W
Output info	28V / 4.2A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA2W120W280V
HQA24120W480V
Power	120W
Output info	48V / 2.5A
Construction	Enclosed pcb mount
Status
Stock Level	Enquire
Datasheet
Request quote / sample	HQA24120W480V
