AC-DC Power Supplies
Please note: This product is not recommended for new designs. We recommend the following instead: XMS500A

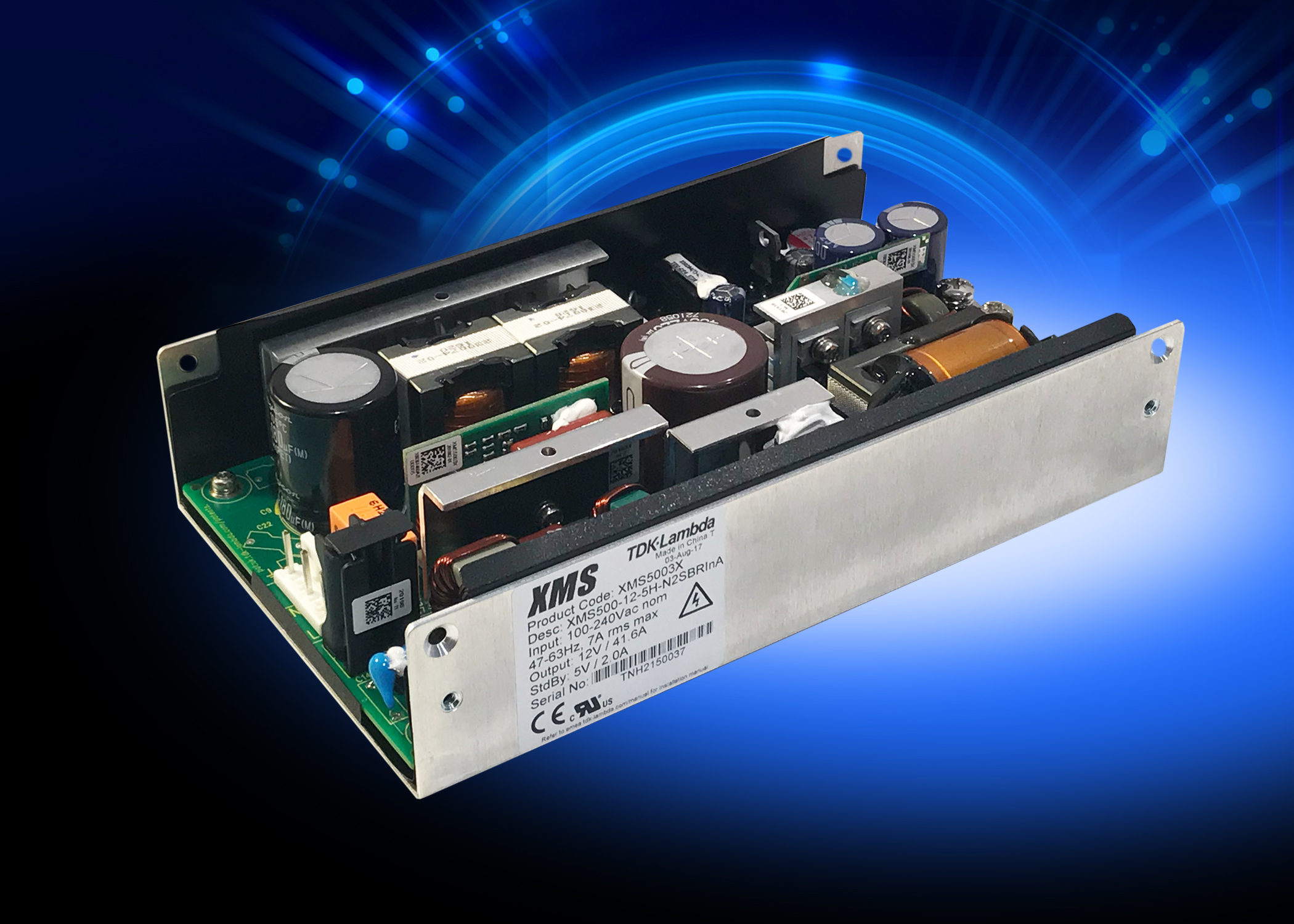

XMS500
500W, Configurable, Class I or II AC-DC power supplyThe 500W, single output XMS500 is available in either class I or class II configurations. Both versions achieve class B EMC performance (both conducted and radiated) to EN55011 and EN55032. The whole range is certified for medical equipment with BF ready medical isolation (1 x MOPP input / ground, 2 x MOPP input / output and 1 x MOPP output / gnd). Other features include a selectable fan supply, various case options, remote on/off and dual or single fusing.
Features
- BF ready medical isolation (MOPP)
- Class I / II with level B EMC
- 1U profile
- Low airflow requirement
- 5 Year Warranty
Downloads
Datasheets & Manuals
Images & 3D Drawings
- Product Image
- XMS500_ClassI_Chassis - 3D Drawing (Step file)
- XMS500_ClassI_Fan - 3D Drawing (Step file)
- XMS500_ClassI_Open - 3D Drawing (Step file)
- XMS500_ClassII_Chassis - 3D Drawing (Step file)
- XMS500_ClassII_Cover - 3D Drawing (Step file)
- XMS500_ClassII_Fan - 3D Drawing (Step file)
- XMS500_ClassII_Open - 3D Drawing (Step file)
Useful links
Other resources
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| XMS5001M Class I | 500W |
12V / 41.6A |
Open Frame pcb |  |
Enquire |
|
|
| XMS5003X Class I | 500W |
12V / 41.6A |
Open Frame | |
Enquire |
|
|
| XMS5005Y Class I with fan | 500W |
12V / 41.6A |
Enclosed | |
Enquire |
|
|
| XMS50024 | 500W |
12V / 41.6A |
Open Frame pcb | |
Enquire |
|
|
| XMS5004F | 500W |
12V / 41.6A |
Open Frame | |
Enquire |
|
|
| XMS5006G with fan | 500W |
12V / 41.6A |
Enclosed | |
Enquire |
|
|
| XMS50070 Class I | 500W |
24V / 20.8A |
Open Frame pcb | |
Enquire |
|
|
| XMS50091 Class I | 500W |
24V / 20.8A |
Open Frame | |
Enquire |
|
|
| XMS500C6 Class I with fan | 500W |
24V / 20.8A |
Enclosed | |
Enquire |
|
|
| XMS5008H | 500W |
24V / 20.8A |
Open Frame pcb | |
Enquire |
|
|
| XMS500BN | 500W |
24V / 20.8A |
Open Frame | |
Enquire |
|
|
| XMS500DP with fan | 500W |
24V / 20.8A |
Enclosed | |
Enquire |
|
|
| XMS500FR Class I | 500W |
36V / 13.8A |
Open Frame pcb | |
Enquire |
|
|
| XMS500HS Class I | 500W |
36V / 13.8A |
Open Frame | |
Enquire |
|
|
| XMS500KB Class I with fan | 500W |
36V / 13.8A |
Enclosed | |
Enquire |
|
|
| XMS500G8 | 500W |
36V / 13.8A |
Open Frame pcb | |
Enquire |
|
|
| XMS500JT | 500W |
36V / 13.8A |
Open Frame | |
Enquire |
|
|
| XMS500LV with fan | 500W |
36V / 13.8A |
Enclosed | |
Enquire |
|
|
| XMS500MC Class I | 500W |
48V / 10.4A |
Open Frame pcb | |
Enquire |
|
|
| XMS500PX Class I | 500W |
48V / 10.4A |
Open Frame | |
Enquire |
|
|
| XMS500SG Class I with fan | 500W |
48V / 10.4A |
Enclosed | |
Enquire |
|
|
| XMS500NW | 500W |
48V / 10.4A |
Open Frame pcb | |
Enquire |
|
|
| XMS500RY | 500W |
48V / 10.4A |
Open Frame | |
Enquire |
|
|
| XMS500T0 with fan | 500W |
48V / 10.4A |
Enclosed | |
Enquire |
|
| Part number | |
|---|---|
| XMS5001M Class I | |
| Power | 500W |
| Output info |
12V / 41.6A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS5003X Class I | |
| Power | 500W |
| Output info |
12V / 41.6A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS5005Y Class I with fan | |
| Power | 500W |
| Output info |
12V / 41.6A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS50024 | |
| Power | 500W |
| Output info |
12V / 41.6A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS5004F | |
| Power | 500W |
| Output info |
12V / 41.6A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS5006G with fan | |
| Power | 500W |
| Output info |
12V / 41.6A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS50070 Class I | |
| Power | 500W |
| Output info |
24V / 20.8A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS50091 Class I | |
| Power | 500W |
| Output info |
24V / 20.8A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500C6 Class I with fan | |
| Power | 500W |
| Output info |
24V / 20.8A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS5008H | |
| Power | 500W |
| Output info |
24V / 20.8A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500BN | |
| Power | 500W |
| Output info |
24V / 20.8A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500DP with fan | |
| Power | 500W |
| Output info |
24V / 20.8A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500FR Class I | |
| Power | 500W |
| Output info |
36V / 13.8A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500HS Class I | |
| Power | 500W |
| Output info |
36V / 13.8A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500KB Class I with fan | |
| Power | 500W |
| Output info |
36V / 13.8A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500G8 | |
| Power | 500W |
| Output info |
36V / 13.8A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500JT | |
| Power | 500W |
| Output info |
36V / 13.8A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500LV with fan | |
| Power | 500W |
| Output info |
36V / 13.8A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500MC Class I | |
| Power | 500W |
| Output info |
48V / 10.4A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500PX Class I | |
| Power | 500W |
| Output info |
48V / 10.4A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500SG Class I with fan | |
| Power | 500W |
| Output info |
48V / 10.4A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500NW | |
| Power | 500W |
| Output info |
48V / 10.4A |
| Construction | Open Frame pcb |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500RY | |
| Power | 500W |
| Output info |
48V / 10.4A |
| Construction | Open Frame |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| XMS500T0 with fan | |
| Power | 500W |
| Output info |
48V / 10.4A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
Key :
Not recommended for new designs
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
