DC-DC Converters
HQA

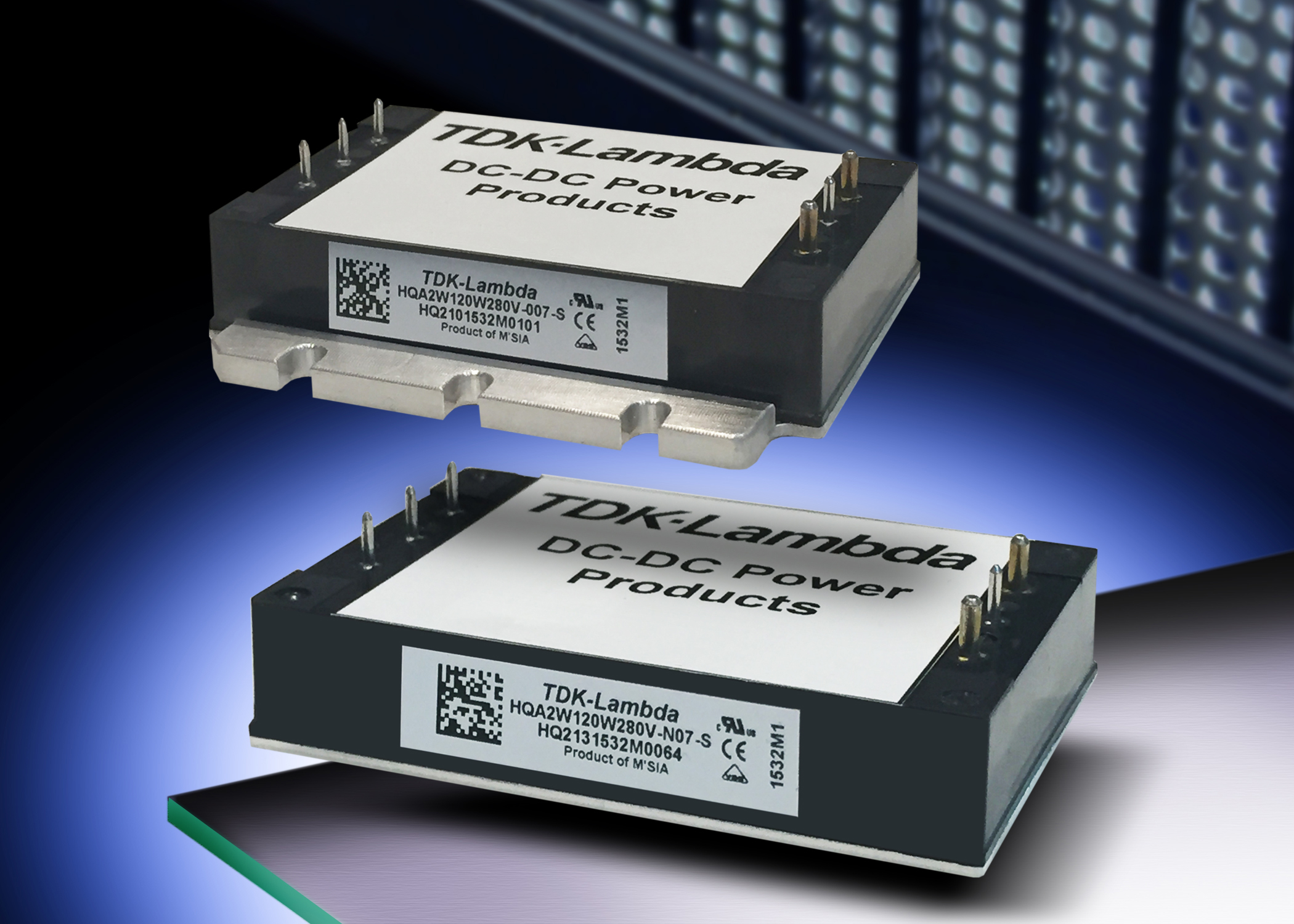

85W - 120W Harsh Environment Quarter Brick ConvertersThe HQA series of encapsulated DC-DC converters are packaged in a ruggedised quarter brick form factor and can deliver 85W and 120W output power. The HQA series operate over a 9V to 40V or 18V to 40V input range (50V for 1 second). These converters, with efficiencies as high as 92%, are suitable for use in COTS, communications and industrial equipment.
Features
- Standard Quarter Brick Footprint
- 9-40, 18-40VDC Inputs
- Up to 92% Efficiency
- Up to 115°C Baseplate Temperatures
- Rugged Package with Encapsulation
- No Optocouplers Used
- Enhanced Screening Option
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| HQA2W085W050V | 85W |
5V / 17A |
Enclosed pcb mount |  |
Enquire |
|
|
| HQA2W120W050V | 120W |
5V / 24A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W085W120V | 85W |
12V / 7.1A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W120W120V | 120W |
12V / 10A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W085W150V | 85W |
15V / 5.7A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W120W150V | 120W |
15V / 8A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W085W240V | 85W |
24V / 3.5A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W120W240V | 120W |
24V / 5A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W085W280V | 85W |
28V / 3A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA2W120W280V | 120W |
28V / 4.2A |
Enclosed pcb mount | |
Enquire |
|
|
| HQA24120W480V | 120W |
48V / 2.5A |
Enclosed pcb mount | |
Enquire |
|
| Part number | |
|---|---|
| HQA2W085W050V | |
| Power | 85W |
| Output info |
5V / 17A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W120W050V | |
| Power | 120W |
| Output info |
5V / 24A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W085W120V | |
| Power | 85W |
| Output info |
12V / 7.1A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W120W120V | |
| Power | 120W |
| Output info |
12V / 10A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W085W150V | |
| Power | 85W |
| Output info |
15V / 5.7A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W120W150V | |
| Power | 120W |
| Output info |
15V / 8A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W085W240V | |
| Power | 85W |
| Output info |
24V / 3.5A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W120W240V | |
| Power | 120W |
| Output info |
24V / 5A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W085W280V | |
| Power | 85W |
| Output info |
28V / 3A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA2W120W280V | |
| Power | 120W |
| Output info |
28V / 4.2A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HQA24120W480V | |
| Power | 120W |
| Output info |
48V / 2.5A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
