DC-DC Converters
iCF

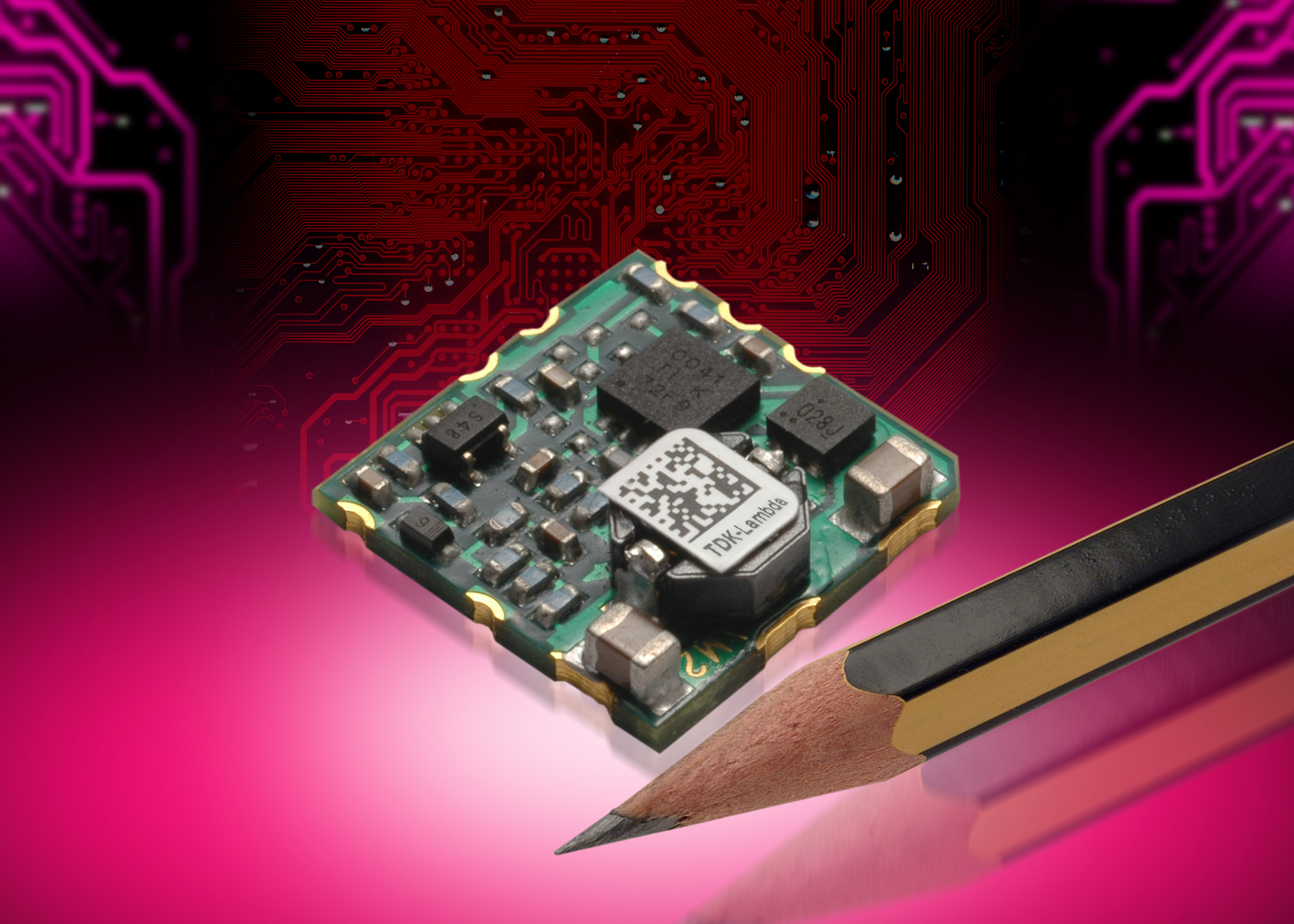

3A Non-isolated SMT DOSA 2 POL ConvertersThe iCF series is one of TDK-Lambda's second generation DOSA-2 compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 12.2 x 12.2mm, the product will deliver 3A from either a 3.3V / 5V or 12V nominal input with efficiency levels of up to 93.5%.
Features
- Fully Optimised Control Loop with Excellent Transient Response
- DOSA Compatible Footprint
- LGA or EPC Format
- 3 Year Warranty
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| iCF12003A007V-007-R | 2.1W |
0.7V / 3A |
Open Frame DOSA smt |  |
Enquire |
|
|
| iCF12003A007V-007-R | 3.6W |
1.2V / 3A |
Open Frame DOSA smt | |
Enquire |
|
|
| iCF12003A007V-007-R | 5.4W |
1.8V / 3A |
Open Frame DOSA smt | |
Enquire |
|
|
| iCF12003A007V-007-R | 7.5W |
2.5V / 3A |
Open Frame DOSA smt | |
Enquire |
|
|
| iCF12003A007V-007-R | 9.9W |
3.3V / 3A |
Open Frame DOSA smt | |
Enquire |
|
|
| iCF12003A007V-007-R | 15W |
5V / 3A |
Open Frame DOSA smt | |
Enquire |
|
| Part number | |
|---|---|
| iCF12003A007V-007-R | |
| Power | 2.1W |
| Output info |
0.7V / 3A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| iCF12003A007V-007-R | |
| Power | 3.6W |
| Output info |
1.2V / 3A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| iCF12003A007V-007-R | |
| Power | 5.4W |
| Output info |
1.8V / 3A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| iCF12003A007V-007-R | |
| Power | 7.5W |
| Output info |
2.5V / 3A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| iCF12003A007V-007-R | |
| Power | 9.9W |
| Output info |
3.3V / 3A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| iCF12003A007V-007-R | |
| Power | 15W |
| Output info |
5V / 3A |
| Construction | Open Frame DOSA smt |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
