DC-DC Converters
iQE

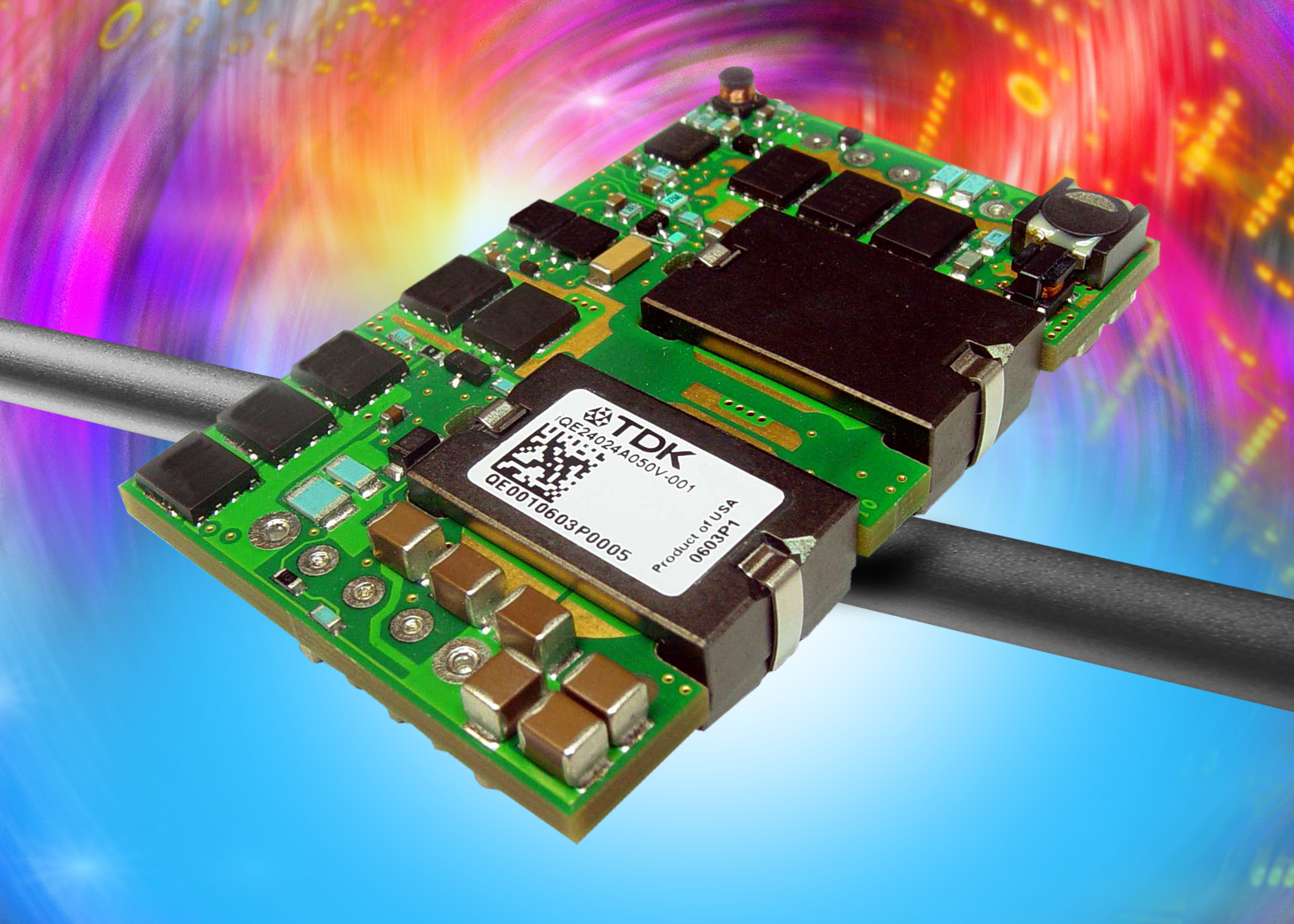

108-204W Quarter Brick DC_DC converterWith a low component count and single-board open-frame design, the iQE provides both solid electrical and thermal performance. These mid power quarter bricks (108 to 204W) feature a low profile of just 10.4mm and are available with 48V input voltages, and output voltages of 5V to 15V.
Features
- 48V Input
- Up to 30A Output
- Up to 204W
- DOSA Compatible
- High Efficiency - up to 94%
- Constant Switching Frequency 330kHz
- Flat Efficiency Curve
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| IQE48030A050V-001-R | 150W |
5V / 30A |
Quarter Brick |  |
Enquire |
|
|
| IQE4W011A120V-001-R | 132W |
12V / 11A |
Quarter Brick | |
Enquire |
|
|
| IQE48017A120V-001-R | 204W |
12V / 17A |
Quarter Brick | |
Enquire |
|
|
| IQE48010A150V-007-R | 150W |
15V / 10A |
Quarter Brick | |
Enquire |
|
| Part number | |
|---|---|
| IQE48030A050V-001-R | |
| Power | 150W |
| Output info |
5V / 30A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| IQE4W011A120V-001-R | |
| Power | 132W |
| Output info |
12V / 11A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| IQE48017A120V-001-R | |
| Power | 204W |
| Output info |
12V / 17A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| IQE48010A150V-007-R | |
| Power | 150W |
| Output info |
15V / 10A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
Key :
Current product
