DC-DC Converters
PXD-M

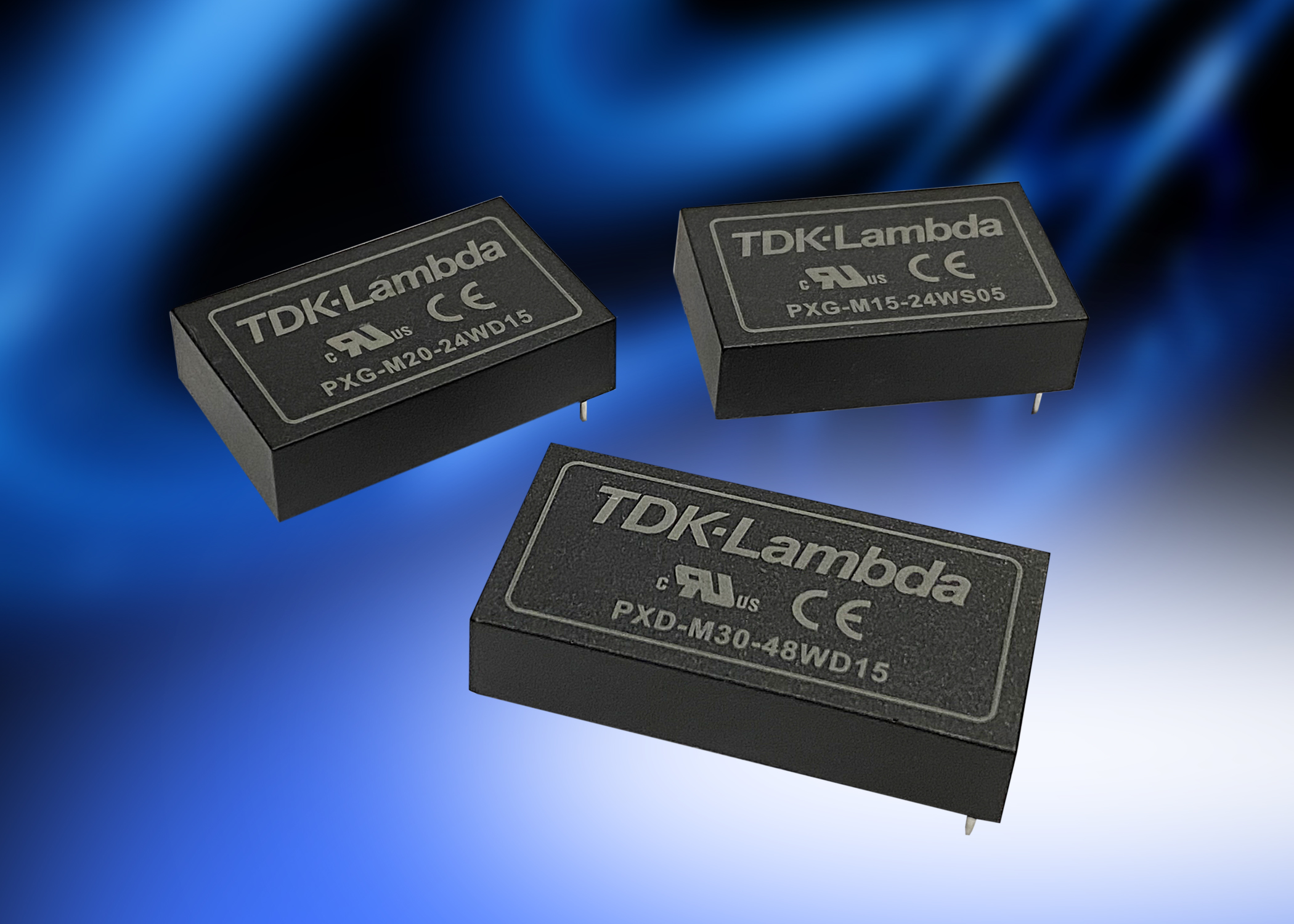

30W Medical and Industrial DC-DC ConvertersCertified to the IEC 60601-1 and IEC 62368-1 standards for Medical and Audio/Video, Information and Communication Technology Equipment, the PXD Medical series is housed in the industry standard 2” x 1 package. Featuring an input to output isolation voltage of 5,000Vac and accepting either a 9 to 36Vdc or 18 to 75Vdc input, the PXD Medical series is available with output voltages of 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc. Operation from 12V and 24V, or 24V and 48V nominal inputs reduces inventory carrying costs and improves part availability.
Features
- Wide 4:1 Input Range
- Compact 2” x 1” Industry Package
- Certified to IEC 60601-1 and IEC 62368-1
- 2 x MOPP Isolation
- Low No Load Power Consumption
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| PXD-M30-24WD05 | 30W |
5V / 3A -5V / -3000mA |
Enclosed pcb mount |  |
Check stock |
|
|
| PXD-M30-48WD05 | 30W |
5V / 3A -5V / -3000mA |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-24WS05 | 30W |
5V / 6A |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-48WS05 | 30W |
5V / 6A |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-24WD12 | 30W |
12V / 1.25A -12V / -1250mA |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-48WD12 | 30W |
12V / 1.25A -12V / -1250mA |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-24WS12 | 30W |
12V / 2.5A |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-48WS12 | 30W |
12V / 2.5A |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-24WD15 | 30W |
15V / 1A -15V / -1000mA |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-48WD15 | 30W |
15V / 1A -15V / -1000mA |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-24WS15 | 30W |
15V / 2A |
Enclosed pcb mount | |
Enquire |
|
|
| PXD-M30-48WS15 | 30W |
15V / 2A |
Enclosed pcb mount | |
Enquire |
|
|
| PXD-M30-24WS24 | 30W |
24V / 1.25A |
Enclosed pcb mount | |
Check stock |
|
|
| PXD-M30-48WS24 | 30W |
24V / 1.25A |
Enclosed pcb mount | |
Check stock |
|
| Part number | |
|---|---|
| PXD-M30-24WD05 | |
| Power | 30W |
| Output info |
5V / 3A -5V / -3000mA |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WD05 | |
| Power | 30W |
| Output info |
5V / 3A -5V / -3000mA |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-24WS05 | |
| Power | 30W |
| Output info |
5V / 6A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WS05 | |
| Power | 30W |
| Output info |
5V / 6A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-24WD12 | |
| Power | 30W |
| Output info |
12V / 1.25A -12V / -1250mA |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WD12 | |
| Power | 30W |
| Output info |
12V / 1.25A -12V / -1250mA |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-24WS12 | |
| Power | 30W |
| Output info |
12V / 2.5A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WS12 | |
| Power | 30W |
| Output info |
12V / 2.5A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-24WD15 | |
| Power | 30W |
| Output info |
15V / 1A -15V / -1000mA |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WD15 | |
| Power | 30W |
| Output info |
15V / 1A -15V / -1000mA |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-24WS15 | |
| Power | 30W |
| Output info |
15V / 2A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WS15 | |
| Power | 30W |
| Output info |
15V / 2A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-24WS24 | |
| Power | 30W |
| Output info |
24V / 1.25A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| PXD-M30-48WS24 | |
| Power | 30W |
| Output info |
24V / 1.25A |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
