Programmable Power Supplies

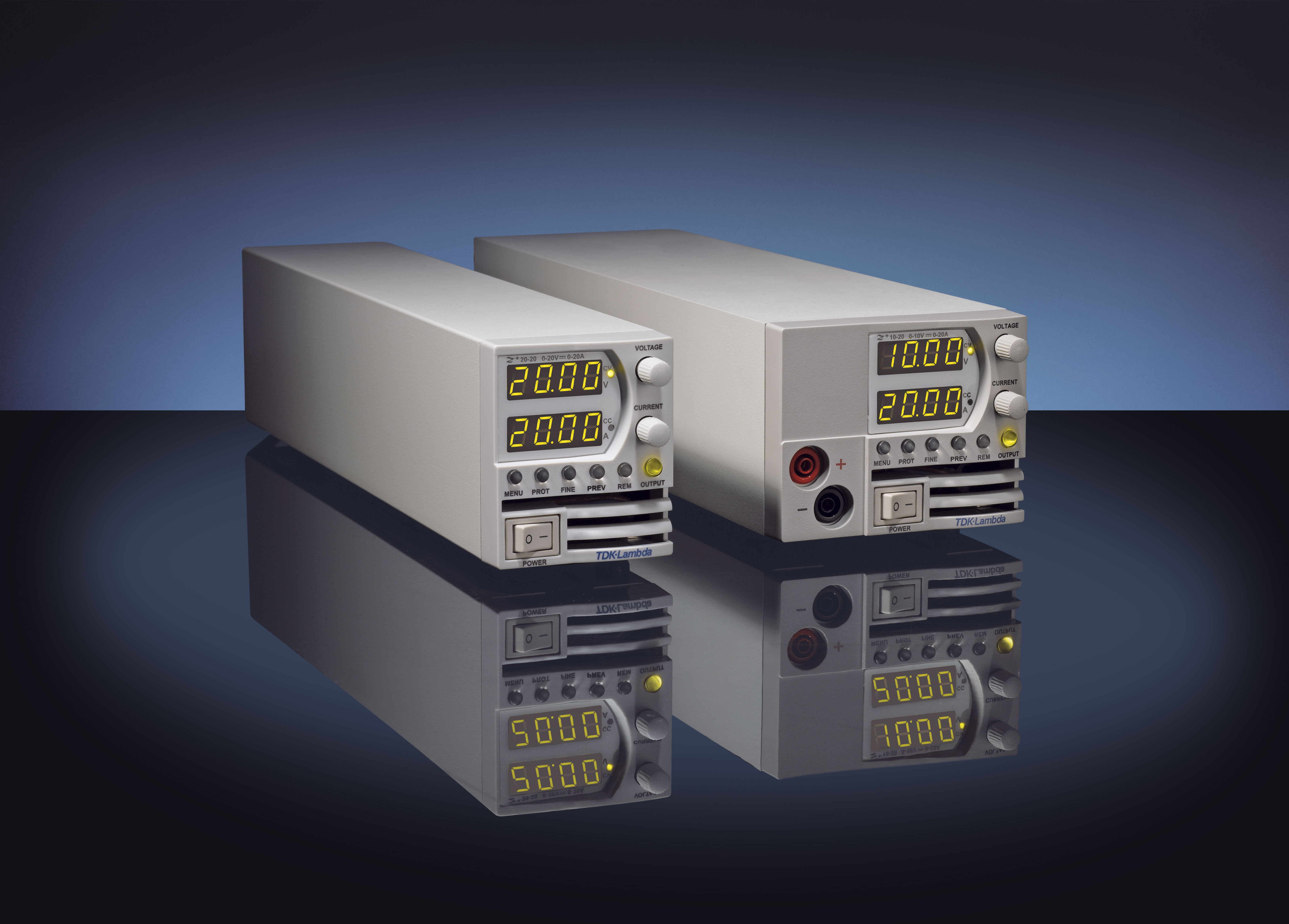

Z+
2U 200W, 400W, 600W and 800W Bench or Rack Mount Power SupplySuitable for bench or 2U rack mounting, the Z+ is a very compact programmable power supply offering power levels from 200 to 800W, voltages of up to 650V and currents of up to 72A. Multiple remote programming methods are available including built-in USB, RS232 & RS485 and optional LAN, GPIB & isolated analogue interfaces. The units can operate in either constant current or constant voltage mode and accepts a wide 85-265Vac input. The product is backed with a five year warranty.
Features
- 2U High
- USB, RS232/485 & Analogue Control and Monitoring
- LAN, GPIB & Isolated Analogue Interface Options
- Rack or Bench Mount
- Up to 650V output
- Built in arbitrary function generation and storage
- User programmable output signal pins
- 5 year warranty
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| Z10-20 | 200W |
10V / 20A |
Rack/bench mount |  |
Check stock |
|
|
| Z10-40 | 400W |
10V / 40A |
Rack/bench mount | |
Enquire | ||
| Z10-60 | 600W |
10V / 60A |
Rack/bench mount | |
Enquire |
|
|
| Z10-72 | 720W |
10V / 72A |
Rack/bench mount | |
Enquire |
|
|
| Z20-10 | 200W |
20V / 10A |
Rack/bench mount | |
Check stock |
|
|
| Z20-20 | 400W |
20V / 20A |
Rack/bench mount | |
Check stock |
|
|
| Z20-30 | 600W |
20V / 30A |
Rack/bench mount | |
Enquire |
|
|
| Z20-40 | 800W |
20V / 40A |
Rack/bench mount | |
Enquire |
|
|
| Z36-6 | 216W |
36V / 6A |
Rack/bench mount | |
Check stock |
|
|
| Z36-12 | 432W |
36V / 12A |
Rack/bench mount | |
Check stock |
|
|
| Z36-18 | 648W |
36V / 18A |
Rack/bench mount | |
Enquire |
|
|
| Z36-24 | 864W |
36V / 24A |
Rack/bench mount | |
Check stock |
|
|
| Z60-3.5 | 210W |
60V / 3.5A |
Rack/bench mount | |
Check stock |
|
|
| Z60-7 | 420W |
60V / 7A |
Rack/bench mount | |
Enquire |
|
|
| Z60-10 | 600W |
60V / 10A |
Rack/bench mount | |
Enquire |
|
|
| Z60-14 | 840W |
60V / 14A |
Rack/bench mount | |
Check stock |
|
|
| Z100-2 | 200W |
100V / 2A |
Rack/bench mount | |
Enquire |
|
|
| Z100-4 | 400W |
100V / 4A |
Rack/bench mount | |
Enquire |
|
|
| Z100-6 | 600W |
100V / 6A |
Rack/bench mount | |
Enquire |
|
|
| Z100-8 | 800W |
100V / 8A |
Rack/bench mount | |
Check stock |
|
|
| Z160-1.3 | 208W |
160V / 1.3A |
Rack/bench mount | |
Enquire |
|
|
| Z160-2.6 | 416W |
160V / 2.6A |
Rack/bench mount | |
Enquire |
|
|
| Z160-4 | 640W |
160V / 4A |
Rack/bench mount | |
Enquire |
|
|
| Z160-5 | 800W |
160V / 5A |
Rack/bench mount | |
Enquire |
|
|
| Z320-0.65 | 208W |
320V / 0.65A |
Rack/bench mount | |
Enquire |
|
|
| Z320-1.3 | 416W |
320V / 1.3A |
Rack/bench mount | |
Enquire |
|
|
| Z320-2 | 640W |
320V / 2A |
Rack/bench mount | |
Enquire |
|
|
| Z320-2.5 | 800W |
320V / 2.5A |
Rack/bench mount | |
Enquire |
|
|
| Z375-2.2 | 825W |
375V / 2.2A |
Rack/bench mount | |
Enquire |
|
|
| Z650-0.32 | 208W |
650V / 0.32A |
Rack/bench mount | |
Enquire |
|
|
| Z650-0.64 | 416W |
650V / 0.64A |
Rack/bench mount | |
Enquire |
|
|
| Z650-1 | 650W |
650V / 1A |
Rack/bench mount | |
Check stock |
|
|
| Z650-1.25 | 812.5W |
650V / 1.25A |
Rack/bench mount | |
Enquire |
| Part number | |
|---|---|
| Z10-20 | |
| Power | 200W |
| Output info |
10V / 20A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z10-40 | |
| Power | 400W |
| Output info |
10V / 40A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet | |
| Request quote / sample | |
| Z10-60 | |
| Power | 600W |
| Output info |
10V / 60A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z10-72 | |
| Power | 720W |
| Output info |
10V / 72A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z20-10 | |
| Power | 200W |
| Output info |
20V / 10A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z20-20 | |
| Power | 400W |
| Output info |
20V / 20A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z20-30 | |
| Power | 600W |
| Output info |
20V / 30A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z20-40 | |
| Power | 800W |
| Output info |
20V / 40A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z36-6 | |
| Power | 216W |
| Output info |
36V / 6A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z36-12 | |
| Power | 432W |
| Output info |
36V / 12A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z36-18 | |
| Power | 648W |
| Output info |
36V / 18A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z36-24 | |
| Power | 864W |
| Output info |
36V / 24A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z60-3.5 | |
| Power | 210W |
| Output info |
60V / 3.5A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z60-7 | |
| Power | 420W |
| Output info |
60V / 7A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z60-10 | |
| Power | 600W |
| Output info |
60V / 10A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z60-14 | |
| Power | 840W |
| Output info |
60V / 14A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z100-2 | |
| Power | 200W |
| Output info |
100V / 2A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z100-4 | |
| Power | 400W |
| Output info |
100V / 4A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z100-6 | |
| Power | 600W |
| Output info |
100V / 6A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z100-8 | |
| Power | 800W |
| Output info |
100V / 8A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z160-1.3 | |
| Power | 208W |
| Output info |
160V / 1.3A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z160-2.6 | |
| Power | 416W |
| Output info |
160V / 2.6A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z160-4 | |
| Power | 640W |
| Output info |
160V / 4A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z160-5 | |
| Power | 800W |
| Output info |
160V / 5A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z320-0.65 | |
| Power | 208W |
| Output info |
320V / 0.65A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z320-1.3 | |
| Power | 416W |
| Output info |
320V / 1.3A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z320-2 | |
| Power | 640W |
| Output info |
320V / 2A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z320-2.5 | |
| Power | 800W |
| Output info |
320V / 2.5A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z375-2.2 | |
| Power | 825W |
| Output info |
375V / 2.2A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z650-0.32 | |
| Power | 208W |
| Output info |
650V / 0.32A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z650-0.64 | |
| Power | 416W |
| Output info |
650V / 0.64A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| Z650-1 | |
| Power | 650W |
| Output info |
650V / 1A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| Z650-1.25 | |
| Power | 812.5W |
| Output info |
650V / 1.25A |
| Construction | Rack/bench mount |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet | |
| Request quote / sample | |
Key :
Current product
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
Quick Product Finder
Try our Quick product finder
Choose your power supply type to begin:Z+ Technical Downloads
Datasheets
Manuals
Images & 3D Drawings
Other resources
Not currently availableZ+ In the TDK-Lambda Newsroom
600W model completes Z+ High Voltage programmable DC Power Supply series
Read the article
800W model added to Z+ High Voltage Programmable DC Power Supplies
Read the article
Deploying constant current power supplies for Active Corrosion Control
Read the article
Z+ High Voltage Series of Programmable Power Supplies
Read the article
Z+ Series of Programmable Power Supplies includes 600W models
Read the article
800W models added to Z+ Series of Programmable Power Supplies
Read the article
TDK-Lambda Z+ programmable power supplies with unique Arbitrary Waveform features
Read the article
TDK-Lambda extends its Z+ Series of Programmable DC Power Supplies
Read the article
TDK-Lambda introduces the Z+ Series Programmable DC Power Supplies
Read the article
A word about our software...
In order to download our software you may need to accept the terms and conditions outlined in our End User License Agreement.
Read the EULA
Software
- Virtual Control Panel
Accept EULA to download - Virtual Control Panel installation & applications guide
Download PDF - Web Software Download Table
Download PDF
