Power Supplies - 1 Phase INPUT
Our broad range of single phase power supplies are the ideal solution for many applications. They have compact size, high efficiency, excellent reliability and good price/performance. Some are champions in size (e.g. NPSM20, NPSM80, NPSM481) other in specific parameters (e.g. 70°C without derating). Most of these products exceed 50% of overload capability, making them suitable for high in-rush loads and selective fuse breaking. All units accept also DC input.
Class II units (NPSM20, NPSM40, NPSM80) are addressing the applications related to home automation, simple automation in machines, survey systems, telecom, etc., but also the renewable energy field.
They have proven reliability and excellent power/volume ratio.
Class I units (NPSM85-120, NPSM121, NPSM241, NPSM481) have received excellent market approval for their reliability and compactness. Simple but elegant look, ease of installation due to pluggable connectors made them market leaders for various industrial applications.
Note:
MD = Model Dependent
NPSM20
20W
35mm width
AC/DC: Class II
IN: 90-264VAC
OUT: 12VDC / 24VDC (MD)
NPSM20 - Technical Datasheet
NPSM20 - Instruction SheetNPSM20 - CE declaration
NPSM20 - 3D model
NPSM40
40W
72mm width
AC/DC: Class II
IN: 90-264VAC
OUT: 5...15VDC / 12...15VDC / 24VDC / 2 x 12...16VDC (MD)NPSM40 - Technical DatasheetNPSM40 - Instruction SheetNPSM40 - CE declarationNPSM40 - 3D model
NPSM80
80W
72mm width
AC/DC: Class II
IN: 90-264VAC
OUT: 12-15VDC / 24VDCNPSM80 - Technical DatasheetNPSM80 - Instruction SheetNPSM80 - CE declarationNPSM80 - 3D model
NPSM85 - NPSM120
85W - 120W
40mm width
AC/DC: Class I
IN: 90-264VAC
OUT: 12-15VDC / 24VDC / 48VDC (MD)
ORing circuit included (MD)NPSM85 - Technical DatasheetNPSM85 - Instruction SheetNPSM85 - CE declaration
- - - - - - - - - - - - - - - - - - - - - - - - - - -NPSM120 - Technical DatasheetNPSM120 - Instruction SheetNPSM120 - CE declaration
- - - - - - - - - - - - - - - - - - - - - - - - - - -NPSM85 / NPSM120 - 3D model
NPSM121
120W ULTRA COMPACT
35mm width
AC/DC: Class I with active PFC
IN: 90-264VAC
OUT: 11.5-29VDC / 23-55VDC (MD)
ORing circuit included (MD)
User settable limitation mode: hiccup or constant current limitation
Easy parallelableNPSM121 - Technical DatasheetNPSM121 - Instruction SheetNPSM121 - CE declarationNPSM121 - 3D model
PSH150
150W, 10kV Isolation, Programmable
AC/DC: Class II
IN: 120-240VAC
OUT: 5-25VDC
ORing circuit includedPSH150 - Technical Datasheet
PSH150 - CE declarationPSH150 3D model
- - - - - - - - - - - - - - - - - - - - - - - - - -
POWERMASTER PSH150 - Software
NPSM240
240W
63mm width
AC/DC: Class I
IN: 120-230VAC
OUT: 12-15VDC / 24VDC / 48VDC / 72VDC (MD)
ORing circuit included (MD)NPSM240 - Technical DatasheetNPSM240 - Instruction SheetNPSM240 - CE declarationNPSM240 3D model
NPSM241
240W ULTRA COMPACT
40mm width
AC/DC: Class I with active PFC
IN: 90-264VAC
OUT: 24VDC / 36VDC / 48VDC / 72VDC (MD)
User settable limitation mode: hiccup or constant current limitation
Easy parallelableNPSM241 - Technical DatasheetNPSM241 - Instruction SheetNPSM241 - CE declarationNPSM241 - 3D model

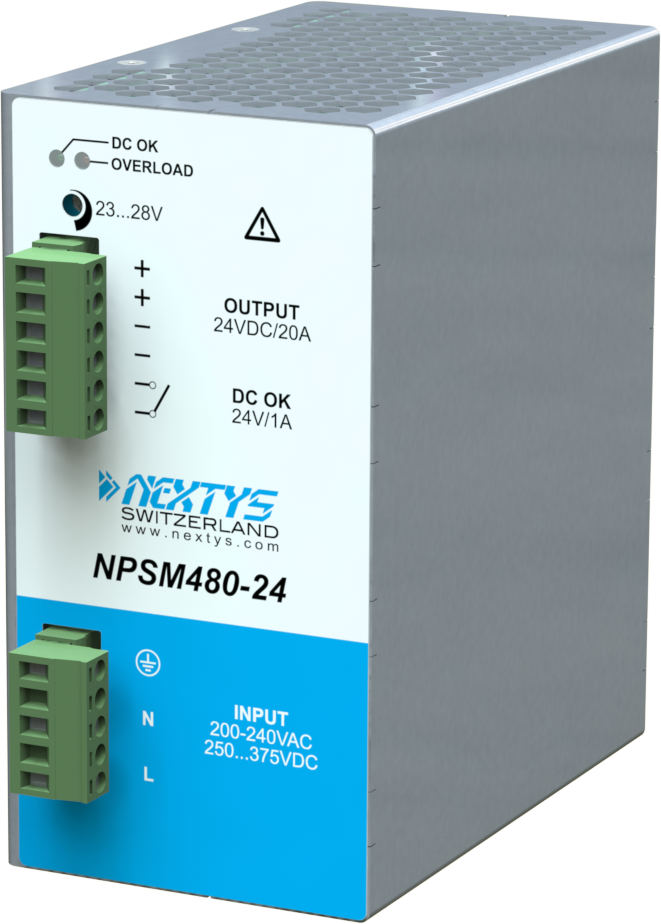

NPSM480
480W COMPACT
73mm width
AC/DC: Class I
IN: 187-264VAC with active PFC, voltage protected up to 350VAC continuous
OUT: 24VDCNPSM480 - Technical DatasheetNPSM480 - Instruction SheetNPSM480 - CE declarationNPSM480 - 3D model
NPSM481
480W ULTRA COMPACT
56mm width
AC/DC: Class I with active PFC
IN: 90-264VAC
OUT: 24VDC / 48VDC / 72VDC (MD)
User settable limitation mode: hiccup or constant current limitation
Easy parallelableNPSM481 - Technical DatasheetNPSM481 - Instruction SheetNPSM481 - CE declarationNPSM481 - 3D model
NPSM501
480W
80mm width
AC/DC: Class I
IN: 120-240VAC
OUT: 24VDC / 48VDC / 72VDC (MD)
User settable limitation mode: hiccup or constant current limitation
Easy parallelableNPSM501 - Technical DatasheetNPSM501 - Instruction SheetNPSM501 - CE declarationNPSM501 - 3D model
